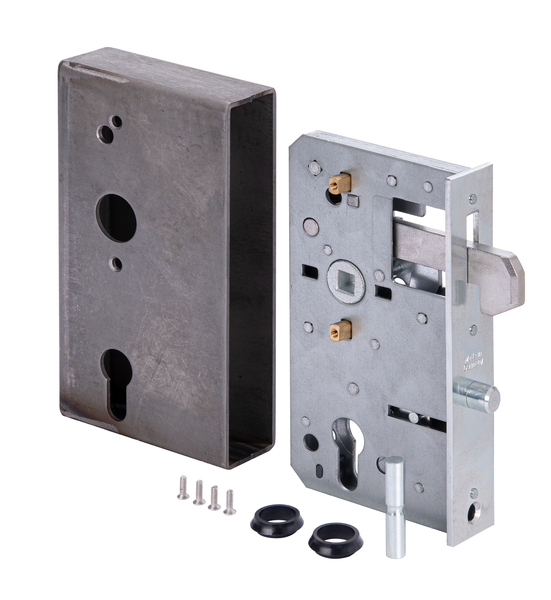

Lock case with galvanised lock for sliding gates

with countersunk screw holes
Art.-No. 413750

case: raw steel, lock: raw steel, lock: galvanised

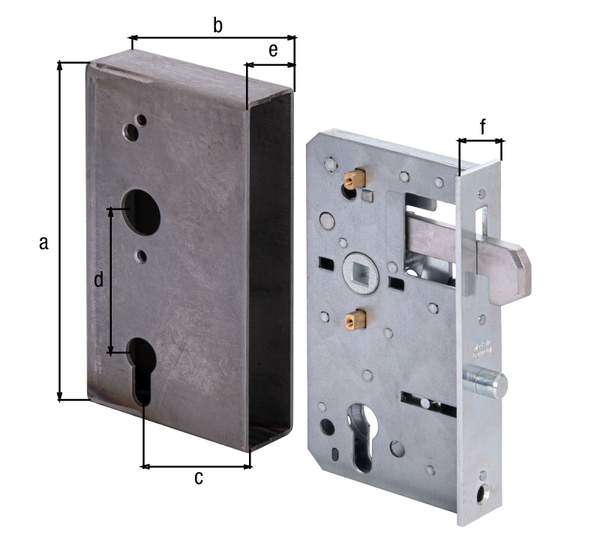

Dimension a:
173 mm
Dimension b:
95 mm
Dimension c:
60 mm
Dimension d:
72 mm
Dimension e:
40 mm
Dimension f:
33 mm
Strike plate height:
167 mm
Socket:
8 x 8 mm
Material/surface:
case: raw steel, lock: raw steel, lock: galvanised
Width:
95 mm
Height:
173 mm
Weight per UQ (kg):
2.11 kg
Contents Unit:
1 Cardboard
  • applicable DIN left and right
  • PC perforation
  • with switch-over
  • with two plastic guides for 18 mm lug
  • lock also locked with two through bolts
