• Lock case with galvanised lock, with countersunk screw holes, backset 55 mm, Material: case: raw steel, lock: raw steel, Surface: lock: galvanised, Height: 185 mm, Width: 90 mm, Size back set: 55 mm, Distance: 72 mm, Wide strike plate holder: 40 mm, Strike plate width: 33 mm, Strike plate height: 180.8 mm
  • Lock case with galvanised lock, with countersunk screw holes, backset 55 mm, Material: case: raw steel, lock: raw steel, Surface: lock: galvanised, Height: 185 mm, Width: 90 mm, Size back set: 55 mm, Distance: 72 mm, Wide strike plate holder: 40 mm, Strike plate width: 33 mm, Strike plate height: 180.8 mm

Lock case with galvanised lock

backset 55 mm
Art.-No. 418700

case: raw steel, lock: raw steel, lock: galvanised

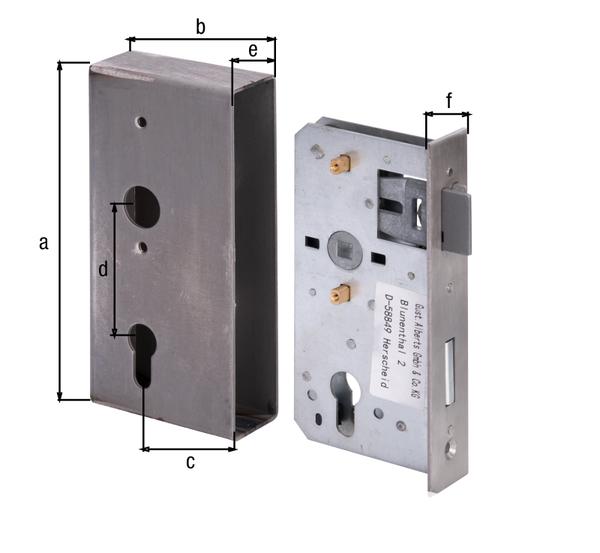

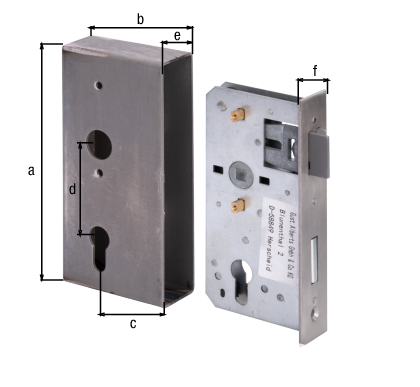

Dimension a:
185 mm
Dimension b:
90 mm
Dimension c:
55 mm
Dimension d:
72 mm
Dimension e:
40 mm
Dimension f:
33 mm
Strike plate height:
180.8 mm
Material/surface:
case: raw steel, lock: raw steel, lock: galvanised
Width:
90 mm
Height:
185 mm
Weight per UQ (kg):
1.818 kg
Contents Unit:
1 Piece
  • applicable DIN left and right
  • The lock can be switched to the opposite opening direction (DIN left/DIN right) by inserting a screwdriver in the notch in the latch bolt, then pressing the latch forward and turning through 180°.

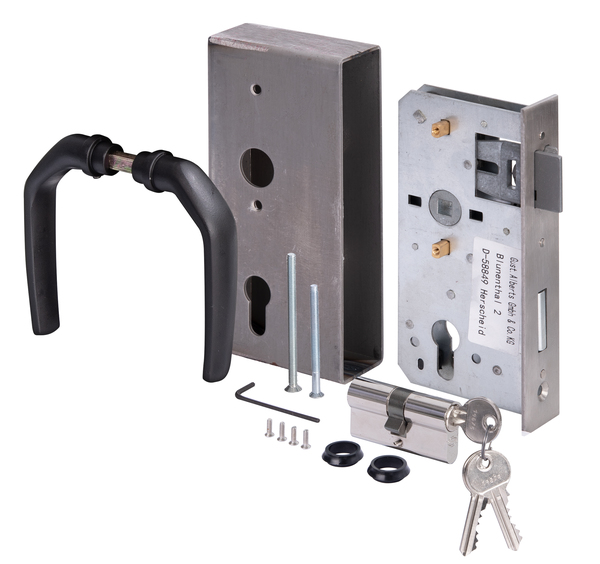

  • One set consists of one door handle, profile cylinder 60 mm with three keys, two door handle guides made of black plastic and four stainless steel screws.
