• Lock case with galvanised lock, with countersunk screw holes, backset 65 mm, Material: case: raw steel, lock: raw steel, Surface: lock: galvanised, Height: 190 mm, Width: 100 mm, Size back set: 65 mm, Distance: 72 mm, Wide strike plate holder: 50 mm, Strike plate width: 43 mm, Strike plate height: 180.2 mm, Socket: 8 x 8 mm
  • Lock case with galvanised lock, with countersunk screw holes, backset 65 mm, Material: case: raw steel, lock: raw steel, Surface: lock: galvanised, Height: 190 mm, Width: 100 mm, Size back set: 65 mm, Distance: 72 mm, Wide strike plate holder: 50 mm, Strike plate width: 43 mm, Strike plate height: 180.2 mm, Socket: 8 x 8 mm

Lock case with galvanised lock

backset 65 mm
Art.-No. 412050

case: raw steel, lock: raw steel, lock: galvanised

2 Variants

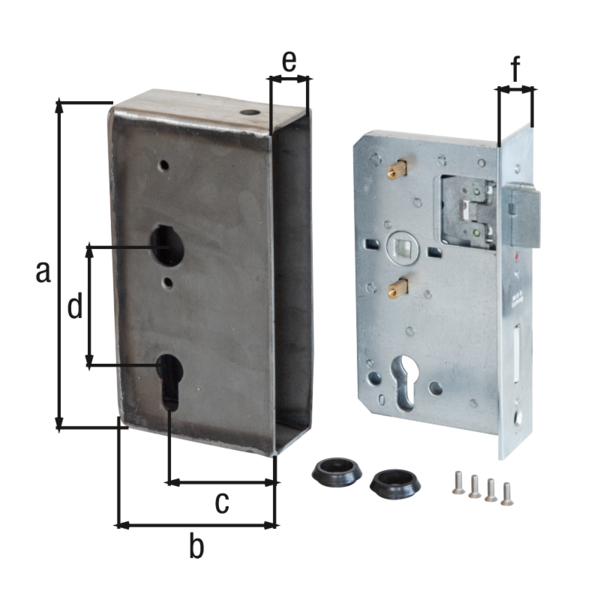

Dimension a:
190 mm
Dimension b:
100 mm
Dimension c:
65 mm
Dimension d:
72 mm
Dimension e:
50 mm
Dimension f:
43 mm
Strike plate height:
180.2 mm
Protruding lock latch:
5 mm
Socket:
8 x 8 mm
Material/surface:
case: raw steel, lock: raw steel, lock: galvanised
Width:
100 mm
Height:
190 mm
Weight per UQ (kg):
2.2 kg
Contents Unit:
1 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action
Article-No. 412050
Dimension a 190 mm
Dimension b 100 mm
Dimension c 65 mm
Dimension d 72 mm
Article-No. 412067
Dimension a 190 mm
Dimension b 100 mm
Dimension c 65 mm
Dimension d 72 mm
  • applicable DIN left and right
  • PC perforation
  • with switch-over
  • 1-level
  • with two plastic guides for 18 mm lug
  • The lock can be switched to the opposite opening direction (DIN left/DIN right) by inserting a screwdriver in the notch in the latch bolt, then pressing the latch forward and turning through 180°.
