• Lock case with galvanised lock, with countersunk screw holes, backset 60 mm, Material: case: raw steel, lock: raw steel, Surface: lock: galvanised, Height: 172 mm, Width: 94 mm, Size back set: 60 mm, Distance: 72 mm, Wide strike plate holder: 30 mm, Strike plate width: 24 mm, Strike plate height: 167 mm, Socket: 8 x 8 mm
  • Lock case with galvanised lock, with countersunk screw holes, backset 60 mm, Material: case: raw steel, lock: raw steel, Surface: lock: galvanised, Height: 172 mm, Width: 94 mm, Size back set: 60 mm, Distance: 72 mm, Wide strike plate holder: 30 mm, Strike plate width: 24 mm, Strike plate height: 167 mm, Socket: 8 x 8 mm

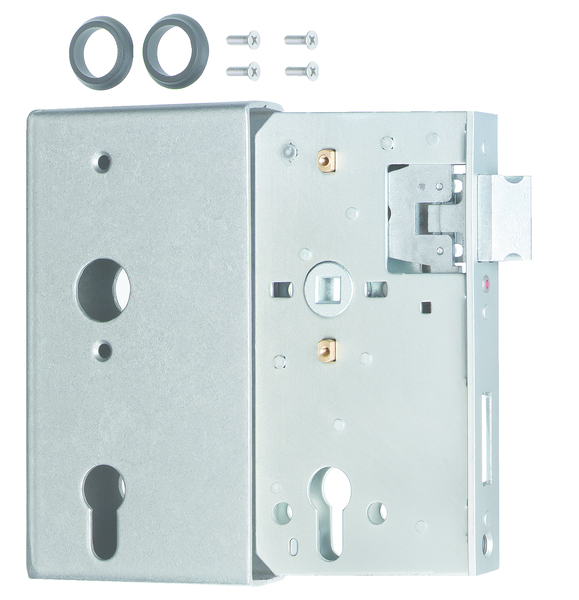

Lock case with galvanised lock

backset 60 mm
Art.-No. 417031

case: raw steel, lock: raw steel, lock: galvanised

2 Variants

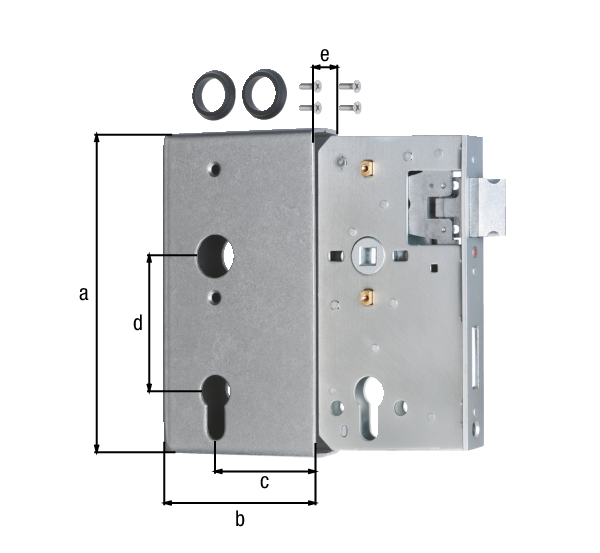

Dimension a:
172 mm
Dimension b:
94 mm
Dimension c:
60 mm
Dimension d:
72 mm
Dimension e:
30 mm
Dimension f:
24 mm
Strike plate height:
167 mm
Protruding lock latch:
0 - 5 mm
Socket:
8 x 8 mm
Material/surface:
case: raw steel, lock: raw steel, lock: galvanised
Width:
94 mm
Height:
172 mm
Weight per UQ (kg):
1.55 kg
Contents Unit:
1 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action
Article-No. 417031
Dimension a 172 mm
Dimension b 94 mm
Dimension c 60 mm
Dimension d 72 mm

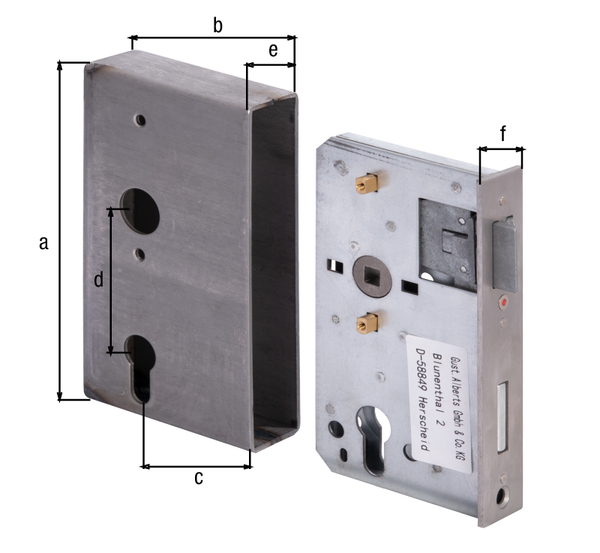

Article-No. 417055
Dimension a 172 mm
Dimension b 94 mm
Dimension c 60 mm
Dimension d 72 mm
  • applicable DIN left and right
  • PC perforation
  • with switch-over
  • 2-level
  • with lubricating nipple
  • with two plastic guides for 18 mm lug
  • The lock can be switched to the opposite opening direction (DIN left/DIN right) by inserting a screwdriver in the notch in the latch bolt, then pressing the latch forward and turning through 180°.
