• Replacement lock, with hook latch, backset 60 mm, with countersunk screw holes, Material: raw steel, Surface: galvanised, Height: 167 mm, Depth: 90 mm, Size back set: 60 mm, Distance: 72 mm, Strike plate width: 33 mm, Strike plate height: 167 mm, For lock casing: 60 mm, Socket: 8 x 8 mm
  • Replacement lock, with hook latch, backset 60 mm, with countersunk screw holes, Material: raw steel, Surface: galvanised, Height: 167 mm, Depth: 90 mm, Size back set: 60 mm, Distance: 72 mm, Strike plate width: 33 mm, Strike plate height: 167 mm, For lock casing: 60 mm, Socket: 8 x 8 mm

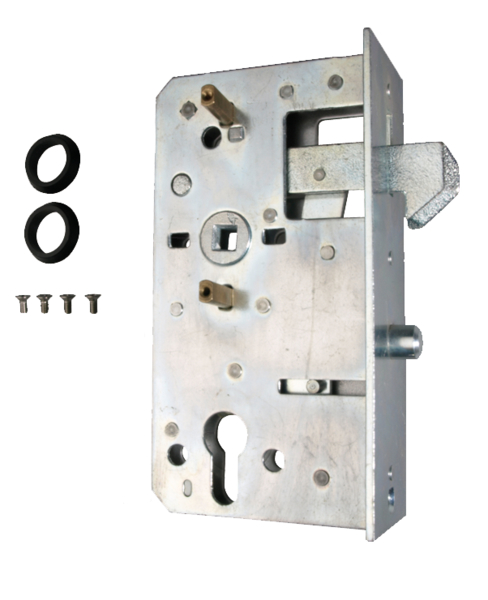

Replacement lock

with countersunk screw holes
Art.-No. 416447

raw steel, galvanised

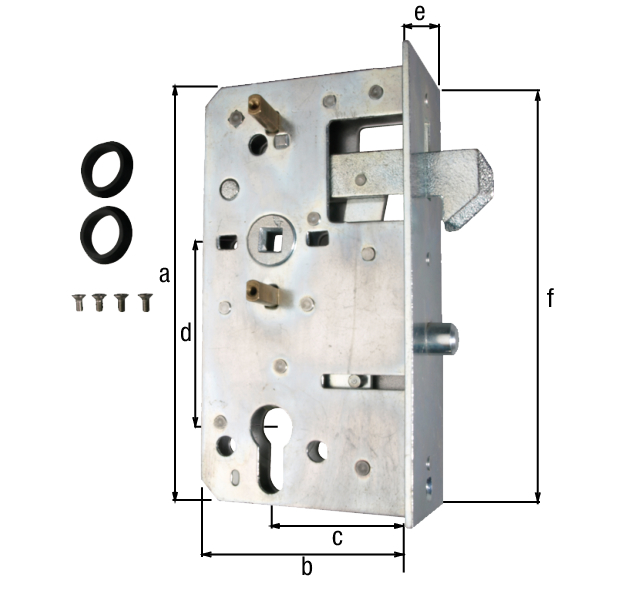

Dimension a:
167 mm
Dimension b:
90 mm
Dimension c:
60 mm
Dimension d:
72 mm
Dimension e:
33 mm
Dimension f:
167 mm
For lock casing:
60 mm
Socket:
8 x 8 mm
Material/surface:
raw steel, galvanised
Height:
167 mm
Depth:
90 mm
Weight per UQ (kg):
0.95 kg
Contents Unit:
1 Piece
  • suitable for lock case no. 413750
