• Replacement lock, with countersunk screw holes, backset 65 mm, Material: raw steel, Surface: galvanised, Height: 164 mm, Depth: 98 mm, Size back set: 65 mm, Distance: 72 mm, Strike plate width: 43 mm, Strike plate height: 180.2 mm, For lock casing: 50 mm
  • Replacement lock, with countersunk screw holes, backset 65 mm, Material: raw steel, Surface: galvanised, Height: 164 mm, Depth: 98 mm, Size back set: 65 mm, Distance: 72 mm, Strike plate width: 43 mm, Strike plate height: 180.2 mm, For lock casing: 50 mm

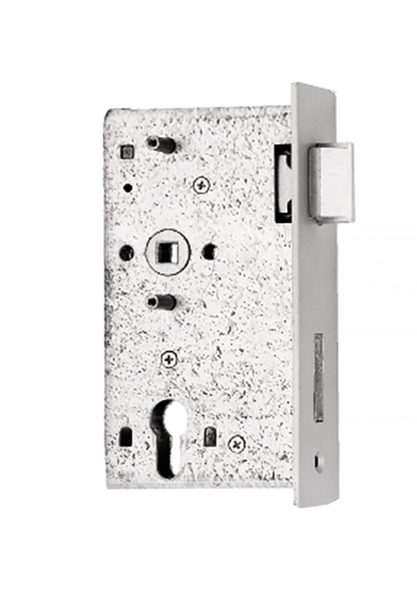

Replacement lock

backset 65 mm
Art.-No. 412036

raw steel, galvanised

2 Variants

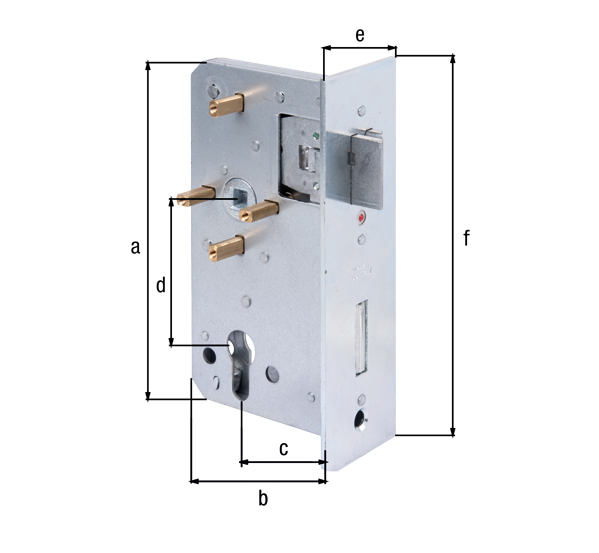

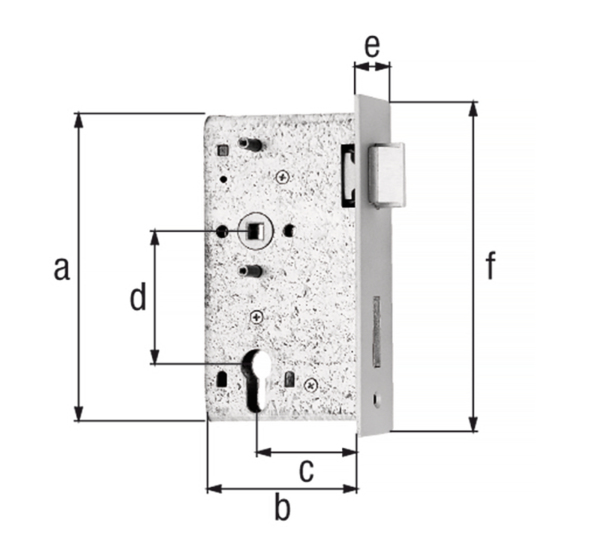

Dimension a:
164 mm
Dimension b:
98 mm
Dimension c:
65 mm
Dimension d:
72 mm
Dimension e:
43 mm
Dimension f:
180.2 mm
For lock casing:
50 mm
Material/surface:
raw steel, galvanised
Height:
164 mm
Depth:
98 mm
Weight per UQ (kg):
1.05 kg
Contents Unit:
1 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action
Article-No. 412036
Dimension a 164 mm
Dimension b 98 mm
Dimension c 65 mm
Dimension d 72 mm
Article-No. 412043
Dimension a 164 mm
Dimension b 98 mm
Dimension c 65 mm
Dimension d 72 mm
  • suitable for lock case nos. 412050 and 412067
