• Replacement lock, with countersunk screw holes, backset 60 mm, Material: raw steel, Surface: galvanised, Height: 167 mm, Depth: 90 mm, Size back set: 60 mm, Distance: 72 mm, Strike plate width: 24 mm, Strike plate height: 167 mm, For lock casing: 30 mm
  • Replacement lock, with countersunk screw holes, backset 60 mm, Material: raw steel, Surface: galvanised, Height: 167 mm, Depth: 90 mm, Size back set: 60 mm, Distance: 72 mm, Strike plate width: 24 mm, Strike plate height: 167 mm, For lock casing: 30 mm

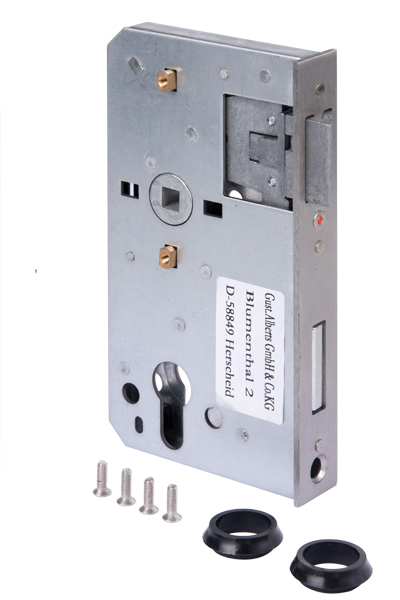

Replacement lock

backset 60 mm
Art.-No. 417093

raw steel, galvanised

2 Variants

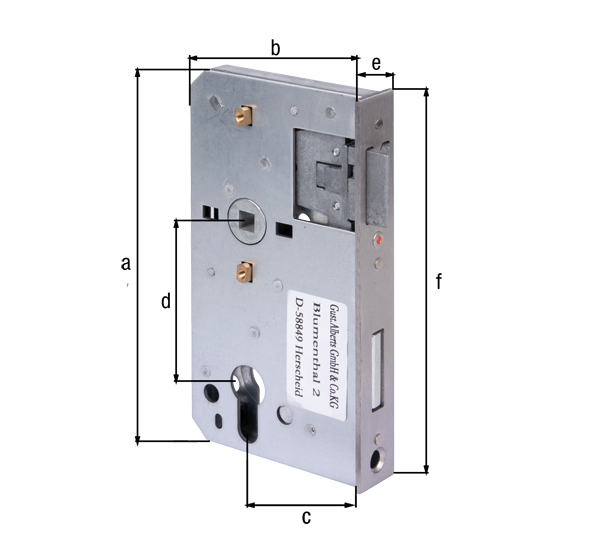

Dimension a:
167 mm
Dimension b:
90 mm
Dimension c:
60 mm
Dimension d:
72 mm
Dimension e:
24 mm
Dimension f:
167 mm
For lock casing:
30 mm
Material/surface:
raw steel, galvanised
Height:
167 mm
Depth:
90 mm
Weight per UQ (kg):
0.77 kg
Contents Unit:
1 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action
Article-No. 417093
Dimension a 167 mm
Dimension b 90 mm
Dimension c 60 mm
Dimension d 72 mm

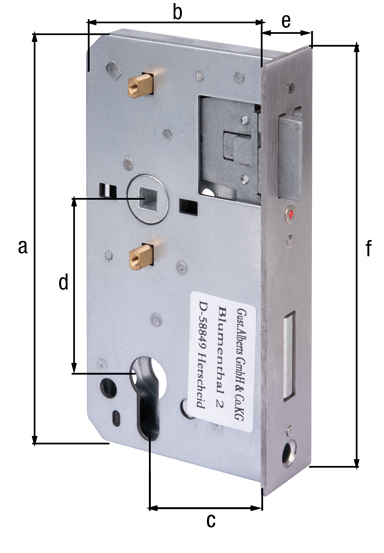

Article-No. 417116
Dimension a 167 mm
Dimension b 90 mm
Dimension c 60 mm
Dimension d 72 mm
  • suitable for lock case nos. 417031, 417048, 417055
