Square tubing with frame lock

backset 25 mm
Art.-No. 413132

Square tube: raw steel, lock: galvanised, for welding on

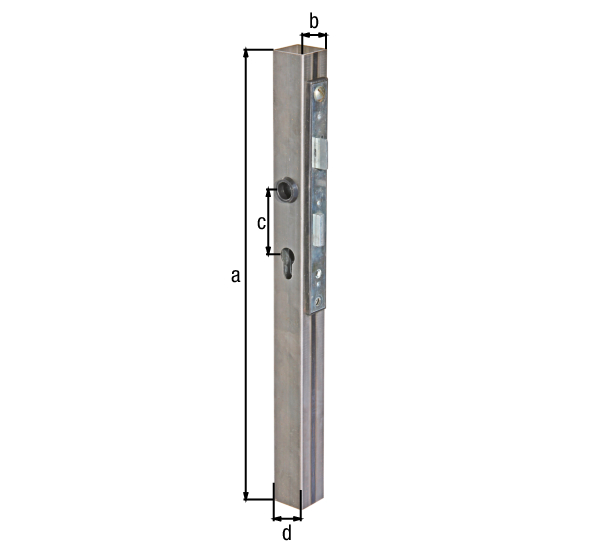

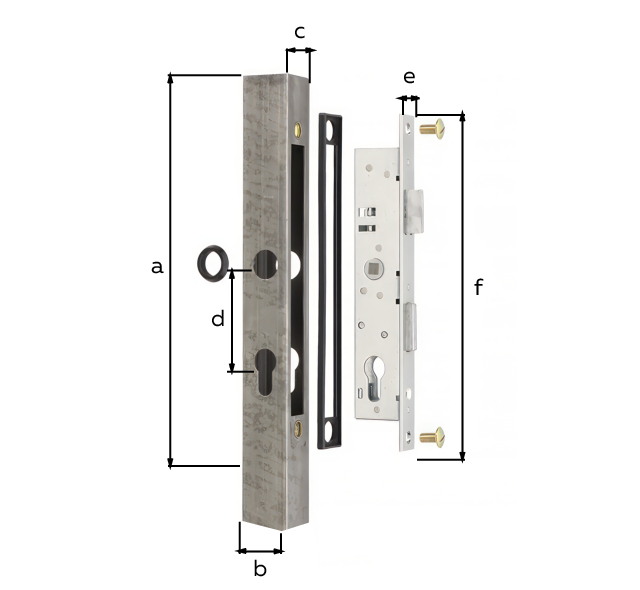

Dimension a:
500 mm
Dimension b:
40 mm
Dimension c:
72 mm
Dimension d:
40 mm
Dimension e:
24 mm
Dimension f:
243 mm
Protruding lock latch:
5 mm
Socket:
8 x 8 mm
Material/surface:
Square tube: raw steel, lock: galvanised, for welding on
Width:
40 mm
Height:
500 mm
Depth:
40 mm
Weight per UQ (kg):
1.370 kg
Contents Unit:
1 Bundle
  • applicable DIN left and right
  • PC perforation
  • with switch-over
  • 1-level
  • with two plastic guides for 18 mm lug
  • The locks are set to DIN left as standard; to switch to DIN right: Press the lever on the back of the lock upwards and reverse the position of the latch.
