• Stop for sash lock boxes, with countersunk screw holes, Material: raw steel, Surface: galvanised, Height: 188 mm, Distance from middle to middle of hole: 162 mm, Depth: 30 mm, Construction height, lower part: 20 mm
  • Stop for sash lock boxes, with countersunk screw holes, Material: raw steel, Surface: galvanised, Height: 188 mm, Distance from middle to middle of hole: 162 mm, Depth: 30 mm, Construction height, lower part: 20 mm

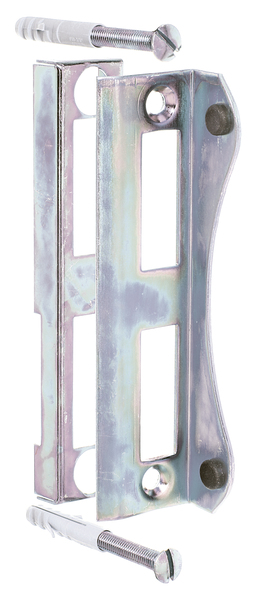

Stop for sash lock boxes

with countersunk screw holes
Art.-No. 412081

raw steel, galvanised

2 Variants

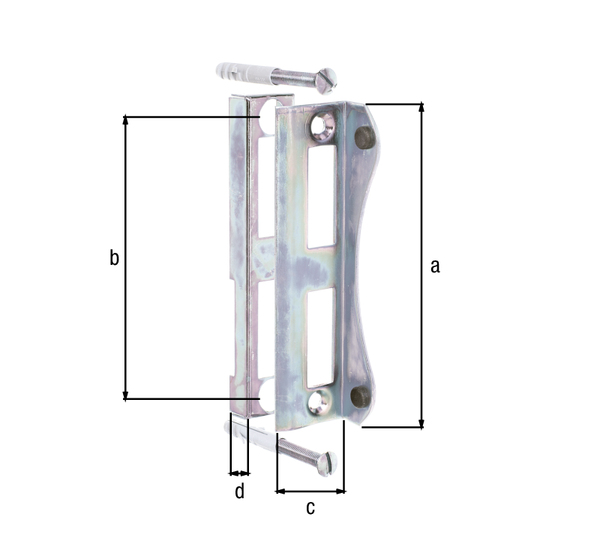

Dimension a:
188 mm
Dimension b:
162 mm
Dimension c:
30 mm
Dimension d:
20 mm
Material/surface:
raw steel, galvanised
Height:
188 mm
Depth:
30 mm
Weight per UQ (kg):
0.36 kg
Contents Unit:
1 Bag
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action
Article-No. 412081
Dimension a 188 mm
Dimension b 162 mm
Dimension c 30 mm
Dimension d 20 mm

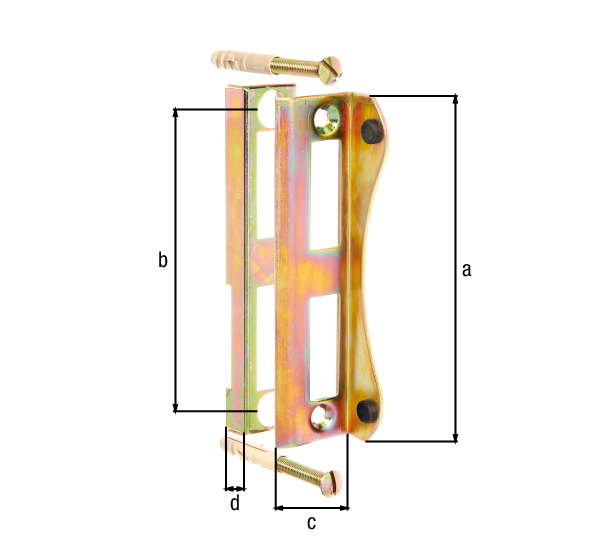

Article-No. 412104
Dimension a 188 mm
Dimension b 162 mm
Dimension c 40 mm
Dimension d 20 mm
  • suitable for all lock cases with a depth of 30 - 40 mm
  • suitable for round and rectangular tubes, second gate leaves and wall columns
  • applicable DIN left and right
  • with rubber buffers for quiet closing
  • One set consists of one lower section, one stop bracket and two raised countersunk head screws, with suitable plugs
