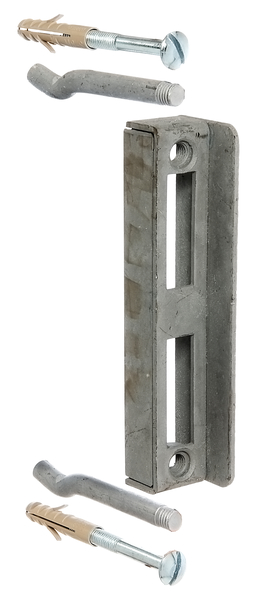

Stop for sash lock boxes
with countersunk screw holes
Art.-No. 412319
raw steel, hot-dip galvanised

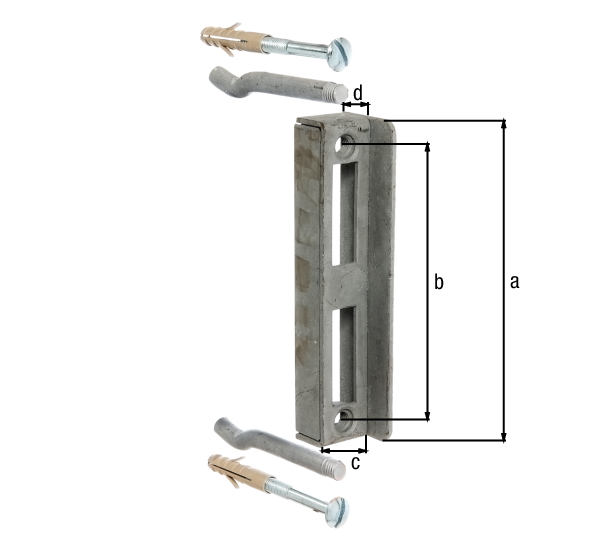

- Dimension a:
- 172 mm
- Dimension b:
- 146 mm
- Dimension c:
- 30 mm
- Dimension d:
- 25 mm
- Material/surface:
- raw steel, hot-dip galvanised
- Height:
- 172 mm
- Depth:
- 30 mm
- Weight per UQ (kg):
- 0.57 kg
- Contents Unit:
- 1 Bag
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action
Article-No.
412319
Dimension a
172 mm
Dimension b
146 mm
Dimension c
30 mm
Dimension d
25 mm

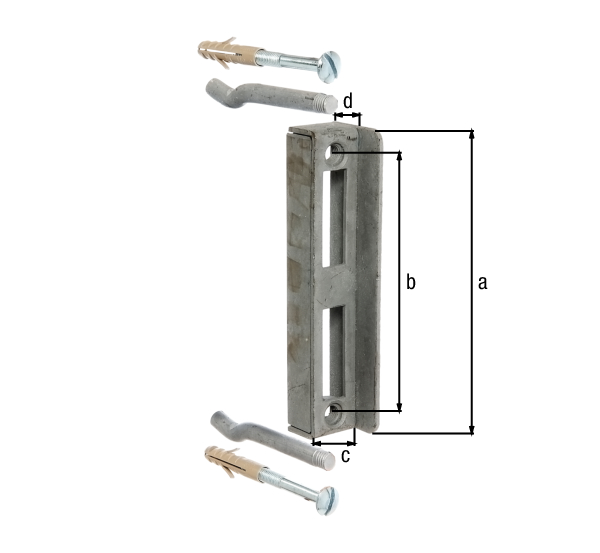

Article-No.
412326
Dimension a
172 mm
Dimension b
146 mm
Dimension c
34 mm
Dimension d
25 mm

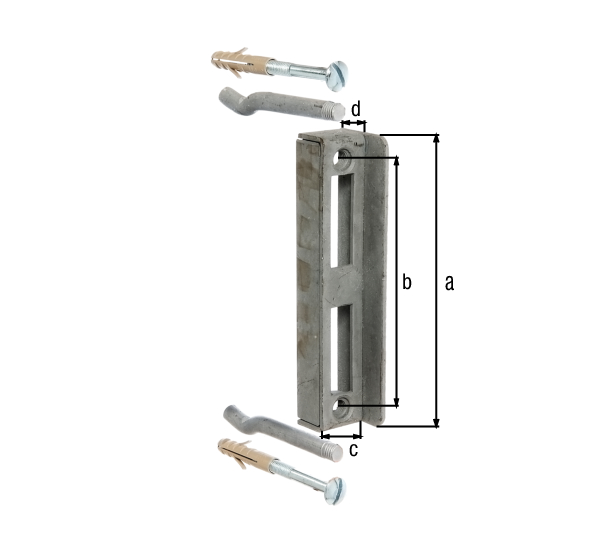

Article-No.
412333
Dimension a
172 mm
Dimension b
146 mm
Dimension c
40 mm
Dimension d
25 mm
- suitable for all lock cases with a depth of 30 - 40 mm
- The stop can be either screwed on or embedded in concrete; if concrete is used, the masonry anchors must first be screwed into the welded nuts.
- Wall anchors, screws, and plugs packed in a bag included.
