• Tube frame lock, with countersunk screw holes, backset 25 mm, Material: raw steel, Surface: galvanised, Height: 197 mm, Width: 38 mm, Size back set: 25 mm, Distance: 72 mm, Strike plate width: 24 mm, Strike plate height: 243 mm, Socket: 8 x 8 mm
  • Tube frame lock, with countersunk screw holes, backset 25 mm, Material: raw steel, Surface: galvanised, Height: 197 mm, Width: 38 mm, Size back set: 25 mm, Distance: 72 mm, Strike plate width: 24 mm, Strike plate height: 243 mm, Socket: 8 x 8 mm

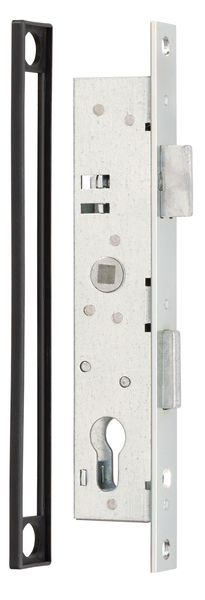

Tube frame lock

backset 25 mm
Art.-No. 413057

raw steel, galvanised

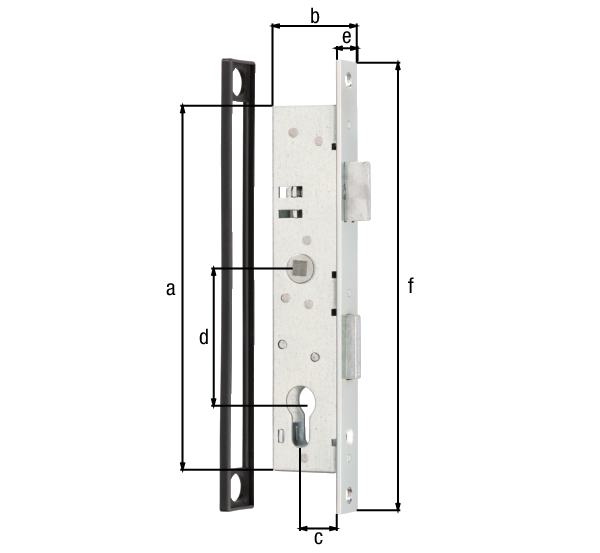

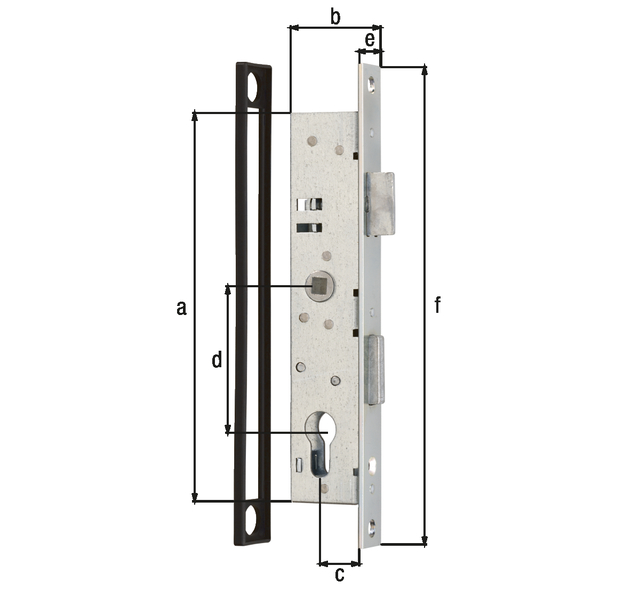

Dimension a:
197 mm
Dimension b:
38 mm
Dimension c:
25 mm
Dimension d:
72 mm
Dimension e:
24 mm
Dimension f:
243 mm
Socket:
8 x 8 mm
Material/surface:
raw steel, galvanised
Width:
38 mm
Height:
197 mm
Weight per UQ (kg):
0.622 kg
Contents Unit:
1 Piece
  • suitable for square tube no. 413132
  • applicable DIN left and right
  • PC perforation
  • with switch-over
  • 1-level
  • with plastic cuff
