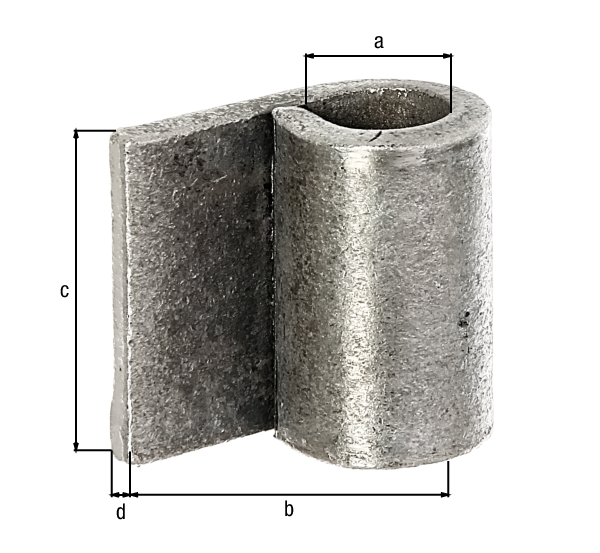

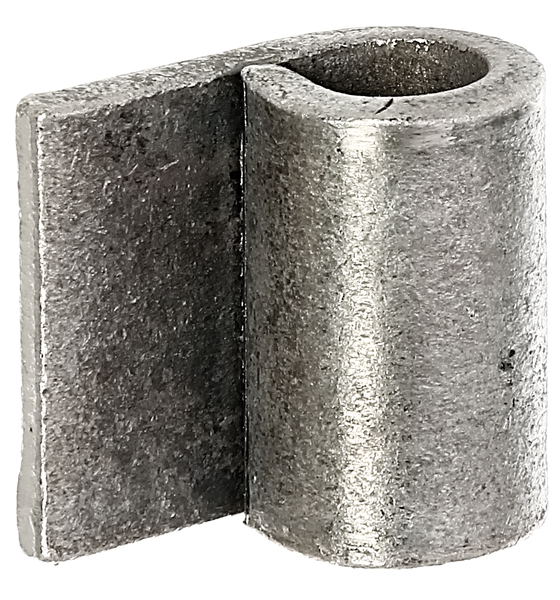

Weld-on hinge
Art.-No. 411367
raw steel, for welding
- Dimension a-Ø:
- 13 mm
- Dimension b:
- 30 mm
- Dimension c:
- 40 mm
- Dimension d:
- 5 mm
- Material/surface:
- raw steel, for welding
- :
- 13 mm
- :
- 5 mm
- Height:
- 40 mm
- Weight per UQ (kg):
- 0.133 kg
- Contents Unit:
- 1 Piece
Article-No.
Dimension a-Ø
Dimension b
Dimension c
Dimension d
Action
Article-No.
411367
Dimension a-Ø
13 mm
Dimension b
30 mm
Dimension c
40 mm
Dimension d
5 mm

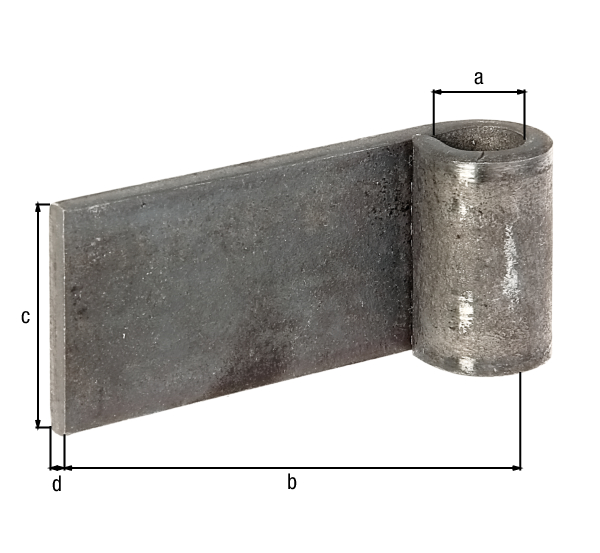

Article-No.
411374
Dimension a-Ø
13 mm
Dimension b
80 mm
Dimension c
40 mm
Dimension d
5 mm

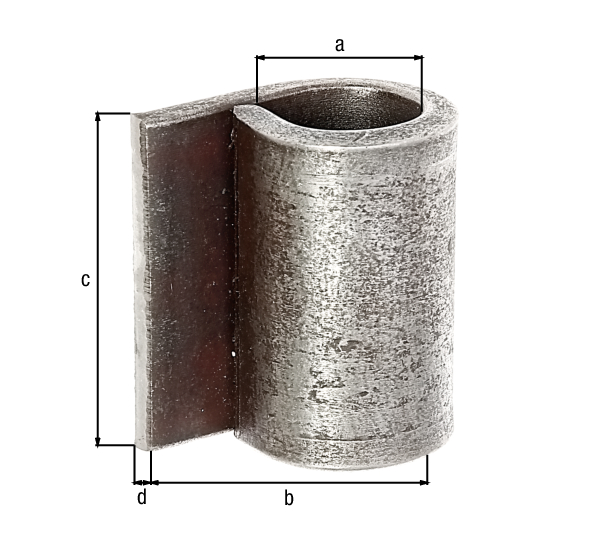

Article-No.
411381
Dimension a-Ø
16 mm
Dimension b
25 mm
Dimension c
45 mm
Dimension d
5 mm

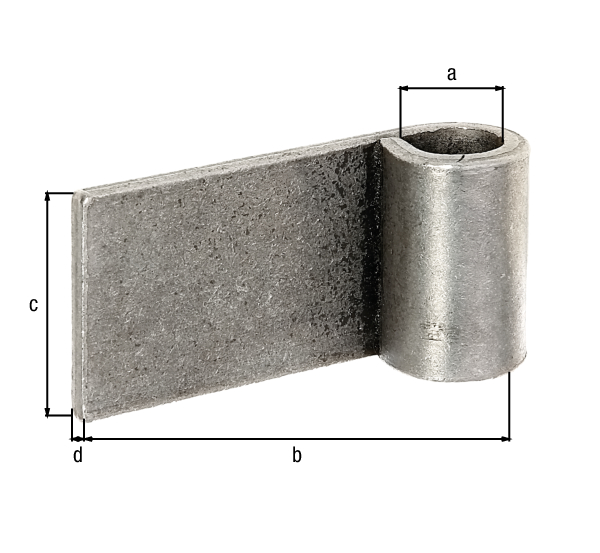

Article-No.
411398
Dimension a-Ø
16 mm
Dimension b
75 mm
Dimension c
45 mm
Dimension d
5 mm

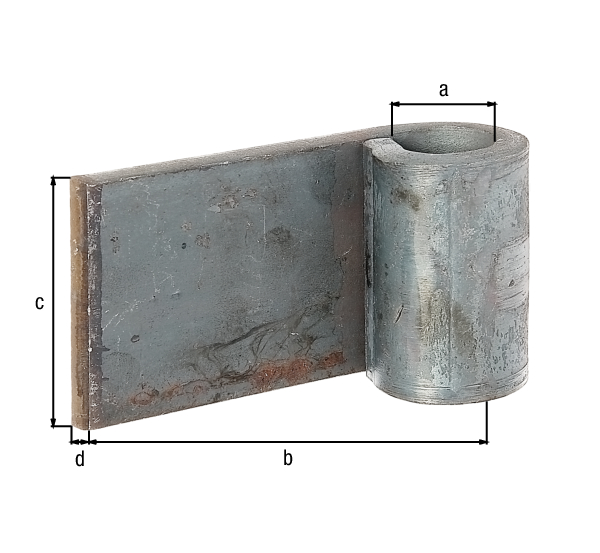

Article-No.
411404
Dimension a-Ø
20 mm
Dimension b
100 mm
Dimension c
60 mm
Dimension d
8 mm
