• Weld-on hinge, adjustable, Material: raw steel, Surface: galvanised pin and middle part, for welding on, Diameter: 22 mm, Pin-Ø: 12 mm, Height: 87 mm, Total length: 90 mm, can be adjusted by: 40 mm, Thread: M16, Max. load capacity: 100 kg
  • Weld-on hinge, adjustable, Material: raw steel, Surface: galvanised pin and middle part, for welding on, Diameter: 22 mm, Pin-Ø: 12 mm, Height: 87 mm, Total length: 90 mm, can be adjusted by: 40 mm, Thread: M16, Max. load capacity: 100 kg

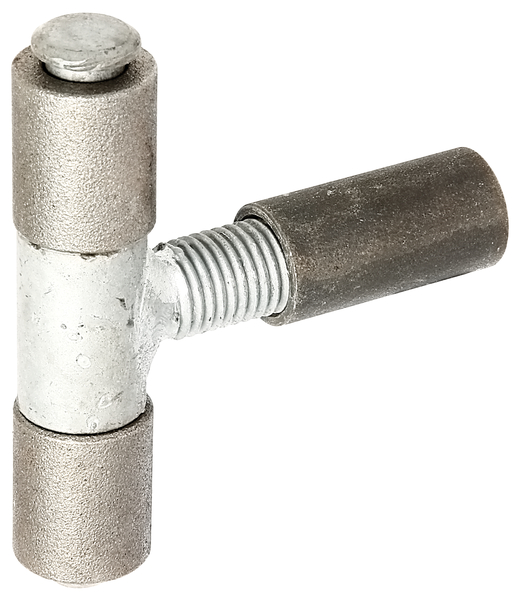

Weld-on hinge, adjustable

Art.-No. 411558

raw steel, galvanised pin and middle part, for welding on

3 Variants

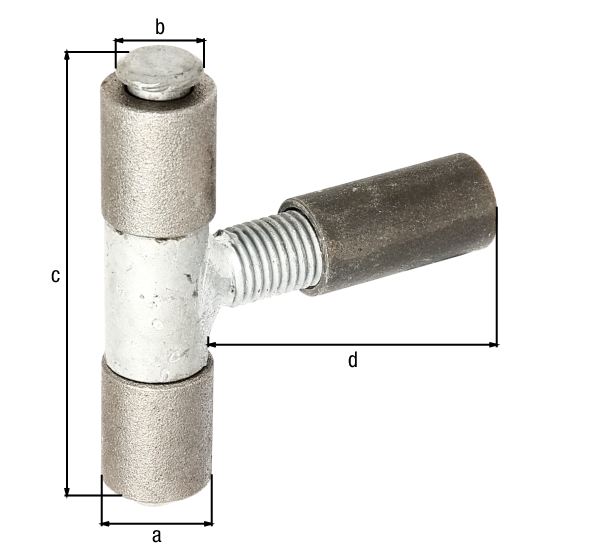

Dimension a-Ø:
22 mm
Dimension b-Ø:
12 mm
Dimension c:
87 mm
Dimension d:
90 mm
can be adjusted by:
40 mm
Thread:
M16
Max. load capacity:
100 kg
Material/surface:
raw steel, galvanised pin and middle part, for welding on
:
22 mm
Height:
87 mm
Weight per UQ (kg):
0.37 kg
Contents Unit:
4 Piece
Article-No.
Dimension a-Ø
Dimension b-Ø
Dimension c
Dimension d
Action
Article-No. 411558
Dimension a-Ø 22 mm
Dimension b-Ø 12 mm
Dimension c 87 mm
Dimension d 90 mm

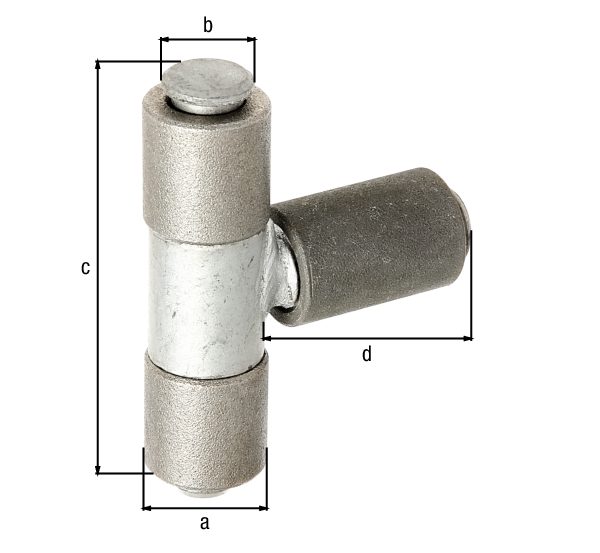

Article-No. 411565
Dimension a-Ø 27 mm
Dimension b-Ø 15 mm
Dimension c 90 mm
Dimension d 92 mm

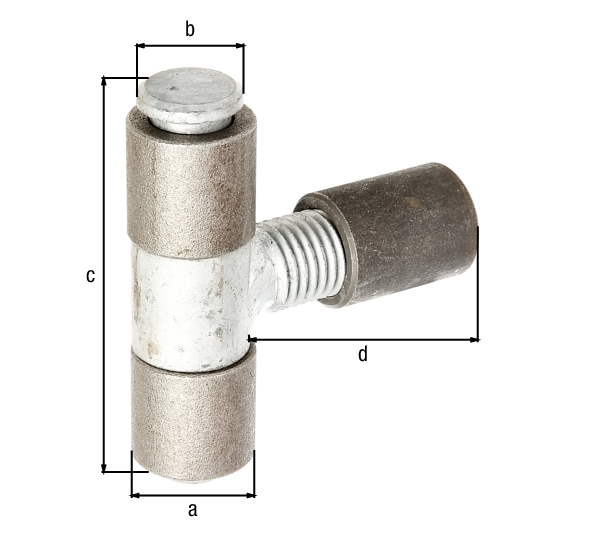

Article-No. 411572
Dimension a-Ø 32 mm
Dimension b-Ø 20 mm
Dimension c 95 mm
Dimension d 95 mm
  • with threaded sleeve for welding
  • with lubricating hole
  • Threaded sleeve included.
