Ovado Hook on plate, DI

with countersunk screw holes
Art.-No. 311360

steel, galvanised, graphite grey powder-coated, for screwing on

2 Variants

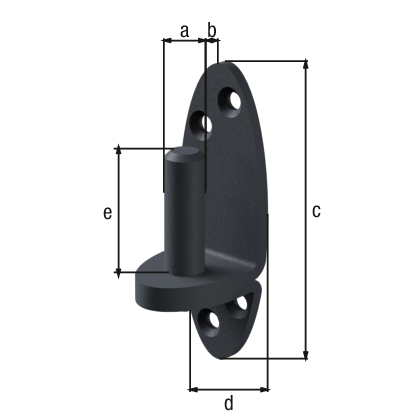

Dimension a-Ø:
13 mm
Dimension b:
10 mm
Dimension c:
102 mm
Dimension d:
35 mm
Dimension e:
40 mm
Material thickness:
4 mm
Quantity x hole Ø:
4 x Ø6 mm
Material/surface:
steel, galvanised, graphite grey powder-coated, for screwing on
Surface / Colour:
GRAU
Material:
Steel
Backset-Ø:
13 mm
Panel width:
35 mm
Weight per UQ (kg):
0.174 kg
Contents Unit:
4 Piece
Article-No.
Dimension a-Ø
Dimension b
Dimension c
Dimension d
Action
Article-No. 311360
Dimension a-Ø 13 mm
Dimension b 10 mm
Dimension c 102 mm
Dimension d 35 mm
Article-No. 311377
Dimension a-Ø 16 mm
Dimension b 13 mm
Dimension c 115 mm
Dimension d 52 mm
