Ovado Heavy-duty angle bracket, reinforced

Art.-No. 339876

steel, galvanised, graphite grey powder-coated

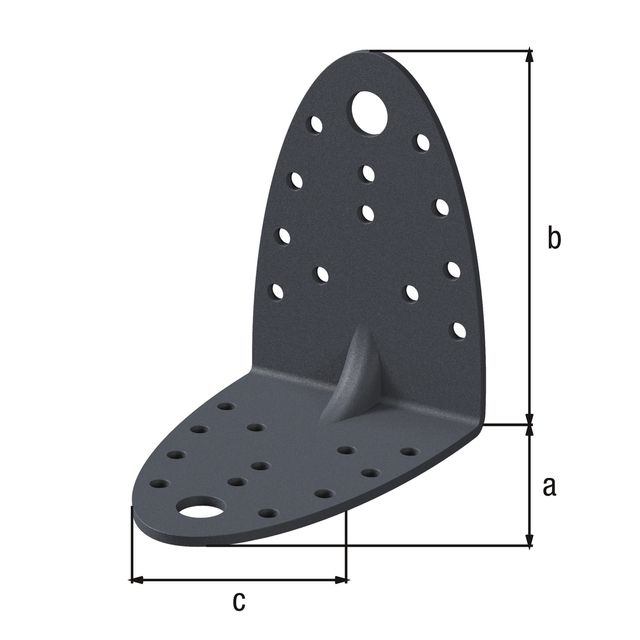

Dimension a:
90 mm
Dimension b:
90 mm
Dimension c:
65 mm
Fastening type:
for screwing on
Material thickness:
2.5 mm
Quantity x hole Ø:
24 x Ø11 mm
Quantity x hole Ø:
2 x Ø4.5 mm
Material/surface:
steel, galvanised, graphite grey powder-coated
Surface / Colour:
GRAU
Material:
Steel
Width:
65 mm
Height:
90 mm
Depth:
90 mm
Weight per UQ (kg):
0.163 kg
Contents Unit:
12 Piece
