• Ovado Shutter hinge, straight, rounded, Material: steel, Surface: galvanised, graphite grey powder-coated, Length: 400 mm, Roller dia.: 13 mm, Width: 40 mm, Material thickness: 5.00 mm, No. of holes: 2 / 1, Hole: Ø7 / 9 x 9 mm
  • Ovado Shutter hinge, straight, rounded, Material: steel, Surface: galvanised, graphite grey powder-coated, Length: 400 mm, Roller dia.: 13 mm, Width: 40 mm, Material thickness: 5.00 mm, No. of holes: 2 / 1, Hole: Ø7 / 9 x 9 mm

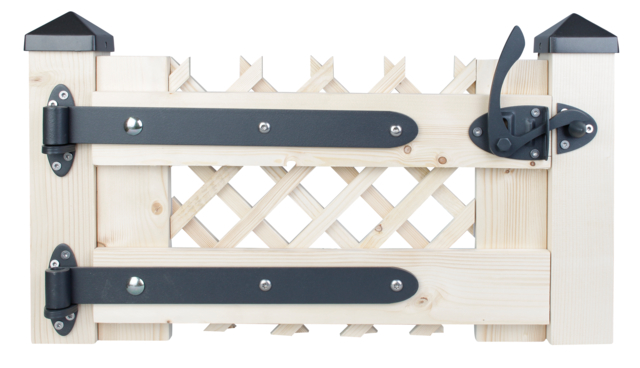

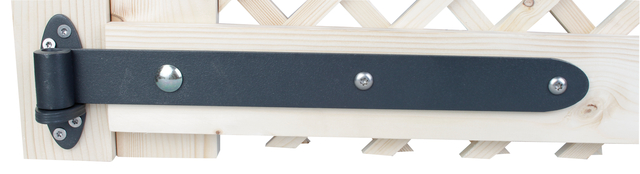

Ovado Shutter hinge, straight, rounded

Art.-No. 314026

steel, galvanised, graphite grey powder-coated

2 Variants

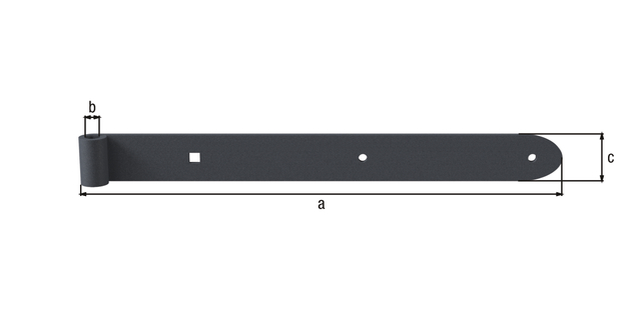

Dimension a:
400 mm
Dimension b-Ø:
13 mm
Dimension c:
40 mm
Material thickness:
5 mm
Quantity x hole Ø:
2 x Ø7 mm
Quantity x hole (LxW):
1 x ( 9 x 9 ) mm
Material/surface:
steel, galvanised, graphite grey powder-coated
Surface / Colour:
GRAU
Material:
Steel
Roll Ø:
13 mm
Length:
400 mm
Width:
40 mm
Weight per UQ (kg):
0.724 kg
Contents Unit:
4 Piece
Article-No.
Dimension a
Dimension b-Ø
Dimension c
Material thickness
Action
Article-No. 314026
Dimension a 400 mm
Dimension b-Ø 13 mm
Dimension c 40 mm
Material thickness 5 mm
Article-No. 314033
Dimension a 600 mm
Dimension b-Ø 16 mm
Dimension c 40 mm
Material thickness 5 mm
