• Ovado Tee hinge, with riveted pin, with countersunk screw holes, Material: steel, Surface: galvanised, graphite grey powder-coated, Belt length: 242 mm, Hinge width: 45 mm, Hinge length: 90 mm, Belt width: 34 mm, Material thickness: 2.50 mm, No. of holes: 6 / 2, Hole: Ø6.5 / 9 x 9 mm, CutCase
  • Ovado Tee hinge, with riveted pin, with countersunk screw holes, Material: steel, Surface: galvanised, graphite grey powder-coated, Belt length: 242 mm, Hinge width: 45 mm, Hinge length: 90 mm, Belt width: 34 mm, Material thickness: 2.50 mm, No. of holes: 6 / 2, Hole: Ø6.5 / 9 x 9 mm, CutCase

Ovado Tee hinge

with countersunk screw holes
Art.-No. 310653

steel, galvanised, graphite grey powder-coated

2 Variants

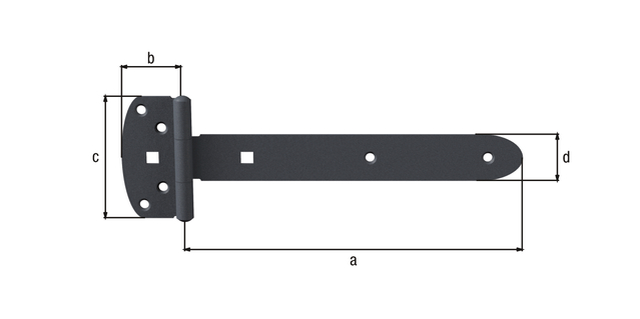

Dimension a:
242 mm
Dimension b:
45 mm
Dimension c:
90 mm
Dimension d:
34 mm
Material thickness:
2.5 mm
Quantity x hole Ø:
6 x Ø6.5 mm
Quantity x hole (LxW):
2 x ( 9 x 9 ) mm
Material/surface:
steel, galvanised, graphite grey powder-coated
Surface / Colour:
GRAU
Material:
Steel
Belt length:
242 mm
Weight per UQ (kg):
0.285 kg
Contents Unit:
6 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action
Article-No. 310653
Dimension a 242 mm
Dimension b 45 mm
Dimension c 90 mm
Dimension d 34 mm
Article-No. 310950
Dimension a 391 mm
Dimension b 58.7 mm
Dimension c 103 mm
Dimension d 40 mm
