• H post support, Material: raw steel, Surface: hot-dip galvanised, for setting in concrete, with CE marking in accordance with ETA-10/0210, Clear width: 71 mm, Height: 300 mm, Total height: 600 mm, Depth: 60 mm, Material thickness: 5.00 mm, No. of holes: 4, Hole: Ø11 mm
  • H post support, Material: raw steel, Surface: hot-dip galvanised, for setting in concrete, with CE marking in accordance with ETA-10/0210, Clear width: 71 mm, Height: 300 mm, Total height: 600 mm, Depth: 60 mm, Material thickness: 5.00 mm, No. of holes: 4, Hole: Ø11 mm

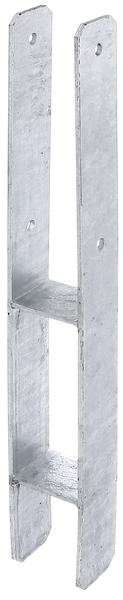

H post support

Art.-No. 213800

raw steel, hot-dip galvanised, for setting in concrete, with CE marking in accordance with ETA-10/0210

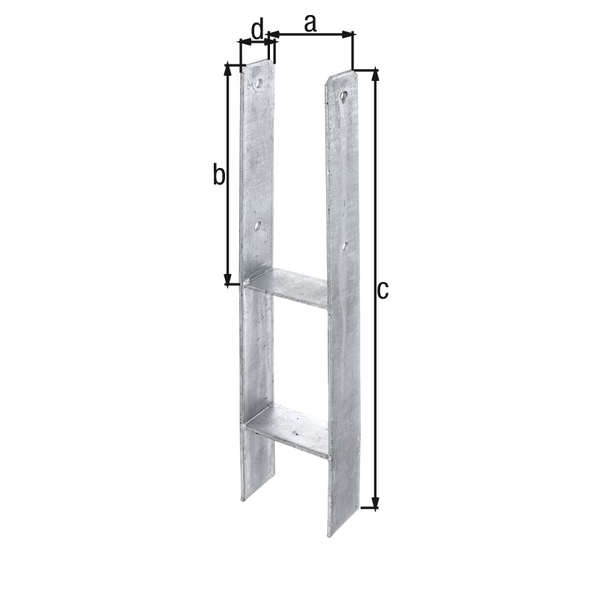

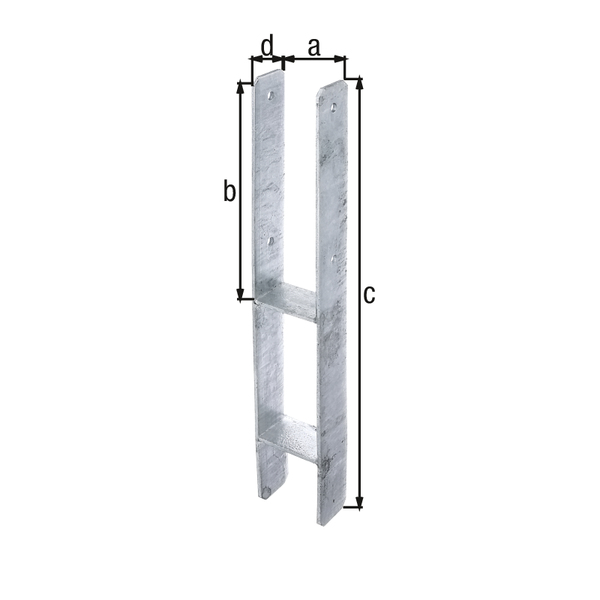

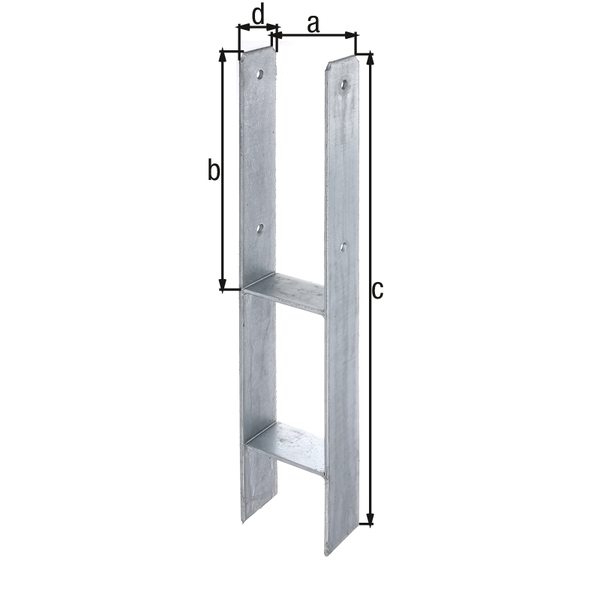

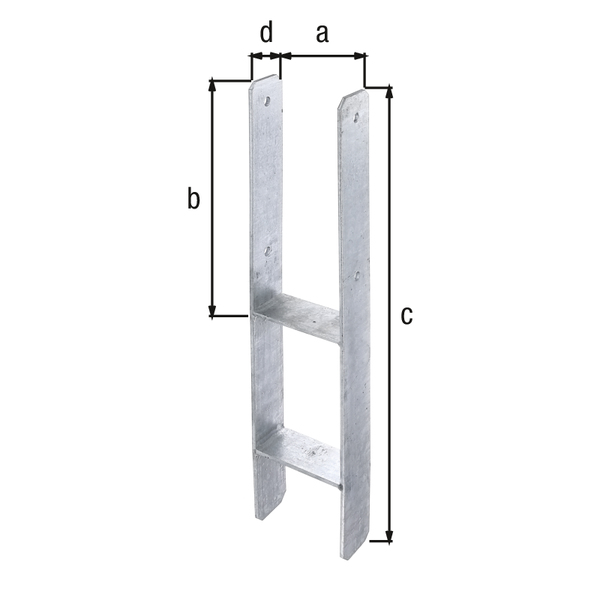

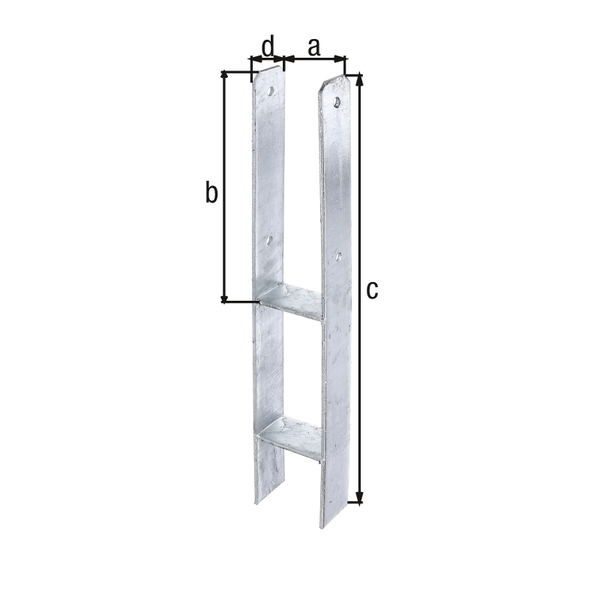

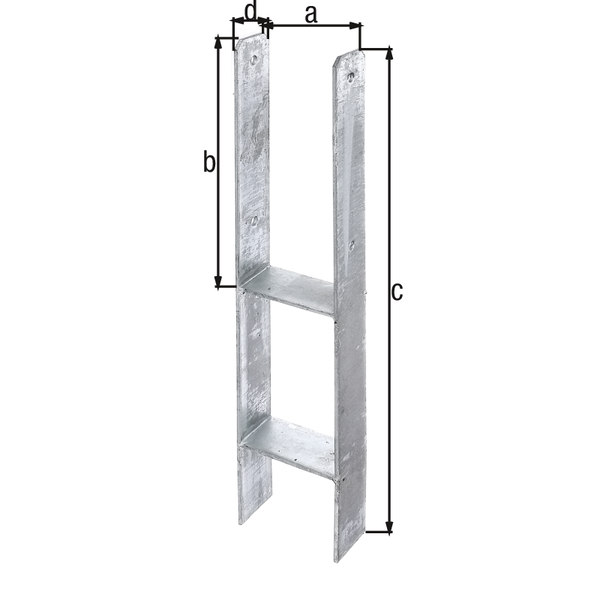

7 Variants

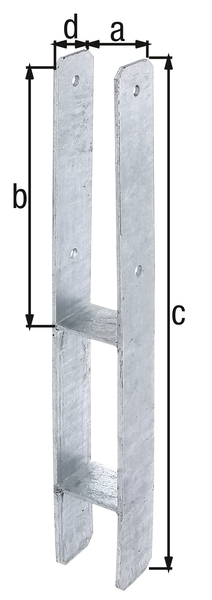

Dimension a:
71 mm
Dimension b:
300 mm
Dimension c:
600 mm
Dimension d:
60 mm
Fastening type:
for setting in concrete
Material thickness:
5 mm
Quantity x hole Ø:
4 x Ø11 mm
Material/surface:
raw steel, hot-dip galvanised, for setting in concrete, with CE marking in accordance with ETA-10/0210
Surface / Colour:
FVZ
Material:
Steel
Approval:
Europ.techn.app. ETA-10/0210
Width:
71 mm
Height:
300 mm
Depth:
60 mm
:
600 mm
Weight per UQ (kg):
2.950 kg
Contents Unit:
1 Piece
  • Statically suitable for high wooden and privacy fences. Suitable for timber construction and wooden fences as per the standard value table.
  • Suitable fasteners can be found in the range “Screws and accessories”.
