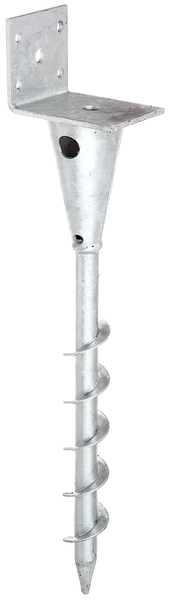

L post support for square timber posts
Art.-No. 212278
raw steel, hot-dip galvanised, for screwing in

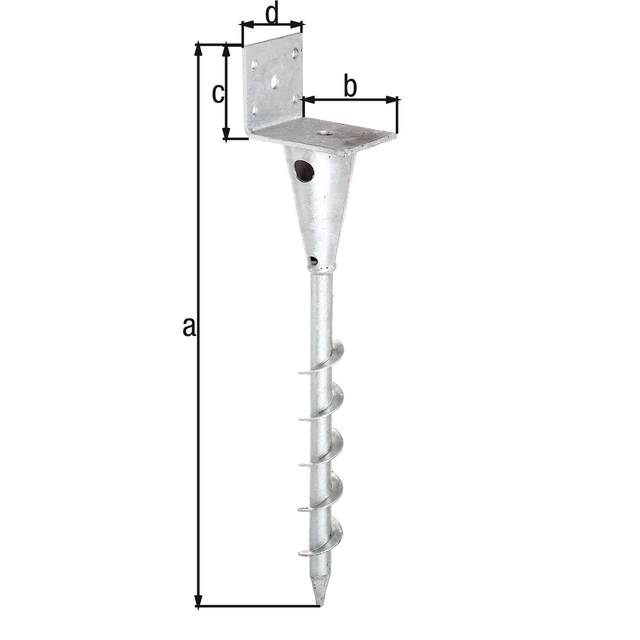

- Dimension a:
- 470 mm
- Dimension b:
- 95 mm
- Dimension c:
- 70 mm
- Dimension d:
- 70 mm
- Fastening type:
- ZEINSCHR
- Material thickness:
- 4 mm
- Quantity x hole Ø:
- 1 x Ø15 mm
- Quantity x hole Ø:
- 4 x Ø7.5 mm
- Material/surface:
- raw steel, hot-dip galvanised, for screwing in
- Surface / Colour:
- FVZ
- Material:
- Steel
- Width:
- 95 mm
- Height:
- 70 mm
- Depth:
- 70 mm
- :
- 470 mm
- Weight per UQ (kg):
- 1.300 kg
- Contents Unit:
- 1 Piece
- suitable for timbers up to 90 x 90 mm
- suitable for terraces with wooden tiles
- Suitable for fixing horizontal square fence posts on the ground.
- For the installation we recommend drive-in tool no. 208394.
- Suitable fasteners can be found in the range “Screws and accessories”.
