• Post support, Material: raw steel, Surface: hot-dip galvanised, for screwing on, Plate length at bottom: 90 mm, Plate width at bottom: 70 mm, Plate length at top: 70 mm, Plate width at bottom: 90 mm, Distance inside edge top plate - inside edge bottom plate: 78 mm, Plate thickness: 4 mm, Tube Ø: 27 mm, No. of holes: 8, Hole: Ø9 mm, 15-year warranty against rusting through
  • Post support, Material: raw steel, Surface: hot-dip galvanised, for screwing on, Plate length at bottom: 90 mm, Plate width at bottom: 70 mm, Plate length at top: 70 mm, Plate width at bottom: 90 mm, Distance inside edge top plate - inside edge bottom plate: 78 mm, Plate thickness: 4 mm, Tube Ø: 27 mm, No. of holes: 8, Hole: Ø9 mm, 15-year warranty against rusting through

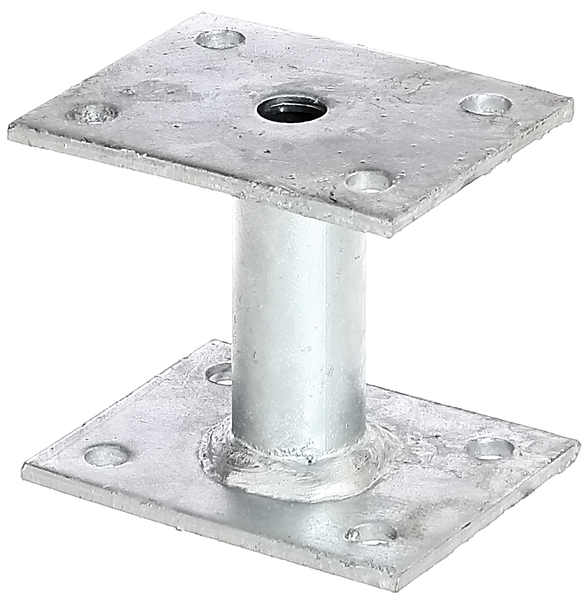

Post support

Art.-No. 219826

raw steel, hot-dip galvanised, for screwing on

2 Variants

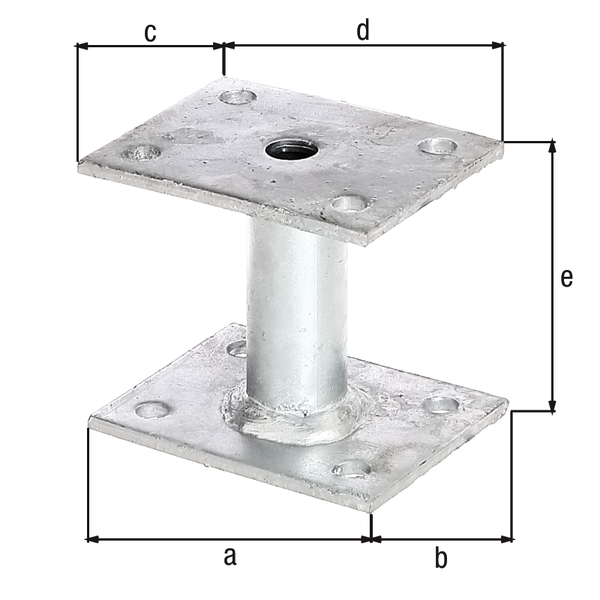

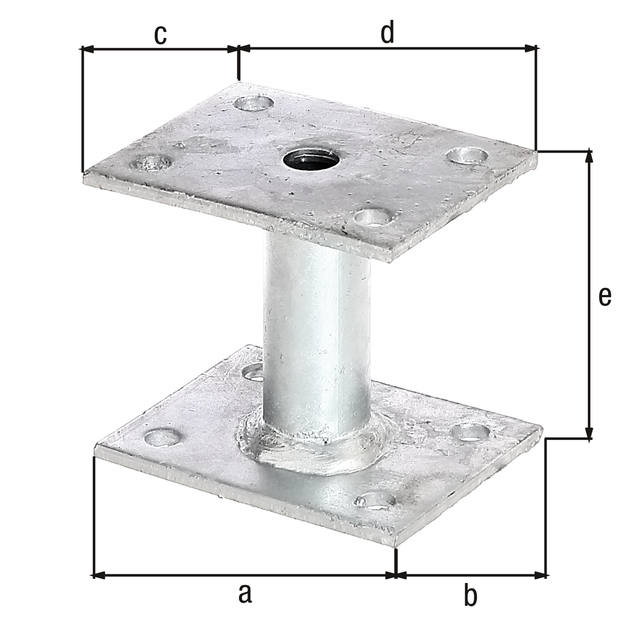

Dimension a:
90 mm
Dimension b:
70 mm
Dimension c:
70 mm
Dimension d:
90 mm
Dimension e:
78 mm
Fastening type:
for screwing on
Plate thickness:
4 mm
Tube Ø:
27 mm
:
15 years
Quantity x hole Ø:
8 x Ø9 mm
Material/surface:
raw steel, hot-dip galvanised, for screwing on
Surface / Colour:
FVZ
Material:
Steel
Height:
78 mm
Weight per UQ (kg):
0.540 kg
Contents Unit:
1 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action
Article-No. 219826
Dimension a 90 mm
Dimension b 70 mm
Dimension c 70 mm
Dimension d 90 mm

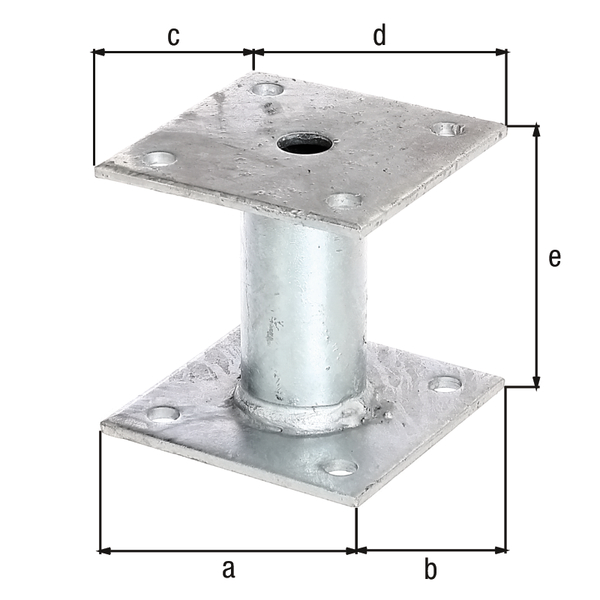

Article-No. 219802
Dimension a 100 mm
Dimension b 100 mm
Dimension c 100 mm
Dimension d 100 mm
  • Suitable fasteners can be found in the range “Screws and accessories”.
