• Post support for blind wood attachment, Material: raw steel, Surface: hot-dip galvanised, for screwing on, with CE marking in accordance with ETA-10/0210, Distance lower edge attachment plate - upper edge of screw-on plate: 45 mm, Length of screw: 140 mm, Plate length: 100 mm, Plate width: 120 mm, Plate Ø: 70 mm
  • Post support for blind wood attachment, Material: raw steel, Surface: hot-dip galvanised, for screwing on, with CE marking in accordance with ETA-10/0210, Distance lower edge attachment plate - upper edge of screw-on plate: 45 mm, Length of screw: 140 mm, Plate length: 100 mm, Plate width: 120 mm, Plate Ø: 70 mm

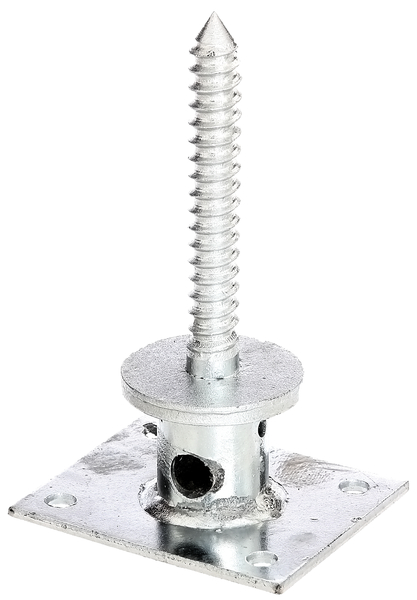

Post support for blind wood attachment

Art.-No. 208035

raw steel, hot-dip galvanised, for screwing on, with CE marking in accordance with ETA-10/0210

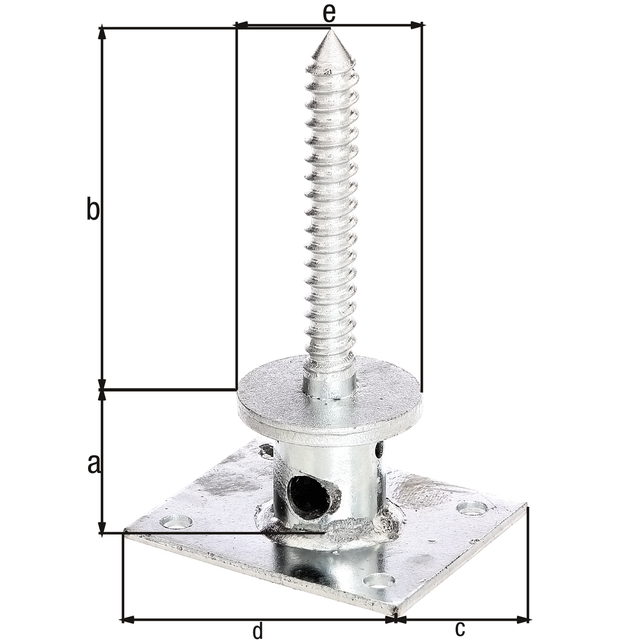

Dimension a:
45 mm
Dimension b:
140 mm
Dimension c:
100 mm
Dimension d:
120 mm
Dimension e-Ø:
70 mm
Fastening type:
for screwing on
Material/surface:
raw steel, hot-dip galvanised, for screwing on, with CE marking in accordance with ETA-10/0210
Surface / Colour:
FVZ
Material:
Steel
Panel width:
120 mm
Approval:
Europ.techn.app. ETA-10/0210
Panel length:
100 mm
Weight per UQ (kg):
1.250 kg
Contents Unit:
1 Piece
  • The stable screw on the post support keeps the post seated properly.
  • Suitable for timber construction and wooden fences as per the standard value table.
  • Holes of a Ø 15 mm must be predrilled in the timber post before the fence bracket can be installed.
