• T post support with flitch plate, Material: raw steel, Surface: hot-dip galvanised, for setting in concrete, Flitch plate width: 80 mm, Flitch plate height: 130 mm, Length of concrete anchor: 200 mm, Plate length: 80 mm, Material thickness of flitch plate: 6.00 mm, Plate thickness: 6 mm, Concrete anchor Ø: 16 mm, No. of holes: 8, Hole: Ø11 mm
  • T post support with flitch plate, Material: raw steel, Surface: hot-dip galvanised, for setting in concrete, Flitch plate width: 80 mm, Flitch plate height: 130 mm, Length of concrete anchor: 200 mm, Plate length: 80 mm, Material thickness of flitch plate: 6.00 mm, Plate thickness: 6 mm, Concrete anchor Ø: 16 mm, No. of holes: 8, Hole: Ø11 mm

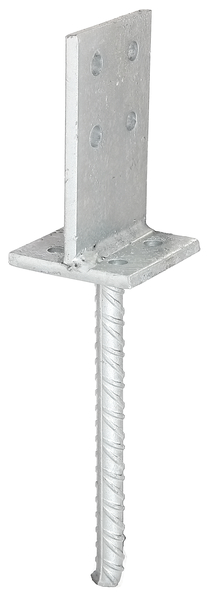

T post support with flitch plate

Art.-No. 215521

raw steel, hot-dip galvanised, for setting in concrete

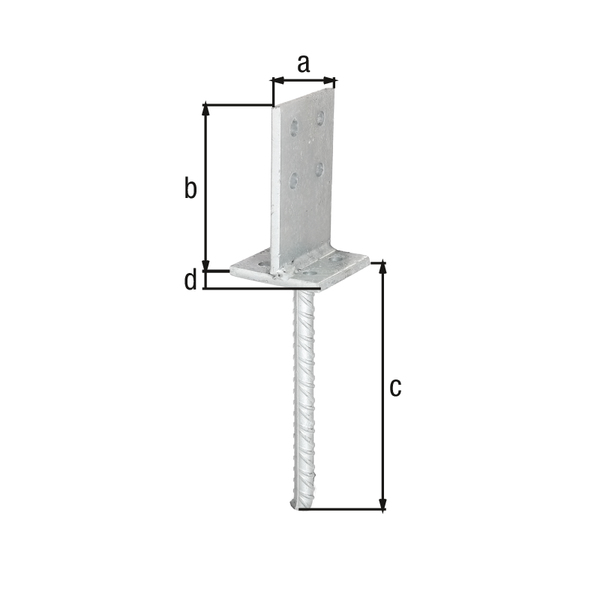

Dimension a:
80 mm
Dimension b:
130 mm
Dimension c:
200 mm
Dimension d:
80 mm
Concrete anchor Ø:
16 mm
Fastening type:
for setting in concrete
Material thickness of flitch plate:
6 mm
Plate thickness:
6 mm
Quantity x hole Ø:
8 x Ø11 mm
Material/surface:
raw steel, hot-dip galvanised, for setting in concrete
Surface / Colour:
FVZ
Material:
Steel
Width:
80 mm
Height:
130 mm
Panel length:
80 mm
Weight per UQ (kg):
1.350 kg
Contents Unit:
1 Piece
  • Not statically suitable for high wooden and privacy fences.
