• U post support with extra long concrete anchor made of riffle steel, Material: raw steel, Surface: hot-dip galvanised, for setting in concrete, Clear width: 91 mm, Height: 100 mm, Length of concrete anchor: 400 mm, Depth: 60 mm, Concrete anchor Ø: 16 mm, Material thickness: 4.00 mm, No. of holes: 6, Hole: Ø11 mm
  • U post support with extra long concrete anchor made of riffle steel, Material: raw steel, Surface: hot-dip galvanised, for setting in concrete, Clear width: 91 mm, Height: 100 mm, Length of concrete anchor: 400 mm, Depth: 60 mm, Concrete anchor Ø: 16 mm, Material thickness: 4.00 mm, No. of holes: 6, Hole: Ø11 mm

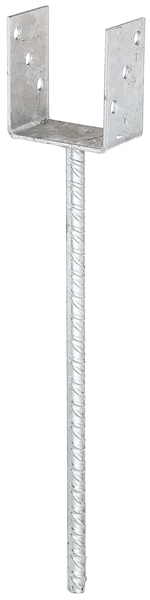

U post support with extra long concrete anchor made of riffle steel

Art.-No. 214401

raw steel, hot-dip galvanised, for setting in concrete

3 Variants
Dimension a:
91 mm
Dimension b:
100 mm
Dimension c:
400 mm
Dimension d:
60 mm
Concrete anchor Ø:
16 mm
Fastening type:
for setting in concrete
Material thickness:
4 mm
Quantity x hole Ø:
6 x Ø11 mm
Material/surface:
raw steel, hot-dip galvanised, for setting in concrete
Surface / Colour:
FVZ
Material:
Steel
Width:
91 mm
Height:
100 mm
Depth:
60 mm
Weight per UQ (kg):
1.050 kg
Contents Unit:
1 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action

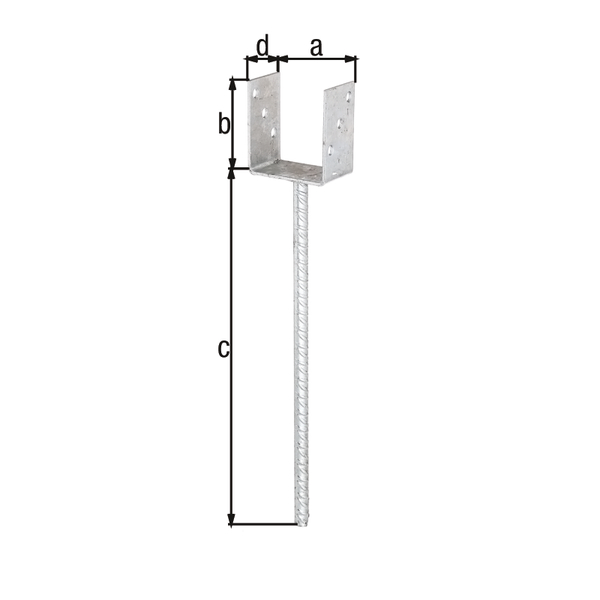

Article-No. 214401
Dimension a 91 mm
Dimension b 100 mm
Dimension c 400 mm
Dimension d 60 mm

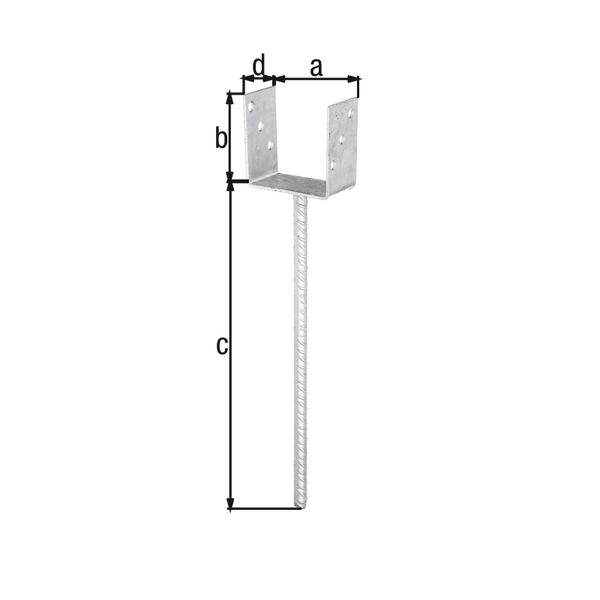

Article-No. 214418
Dimension a 101 mm
Dimension b 100 mm
Dimension c 400 mm
Dimension d 60 mm

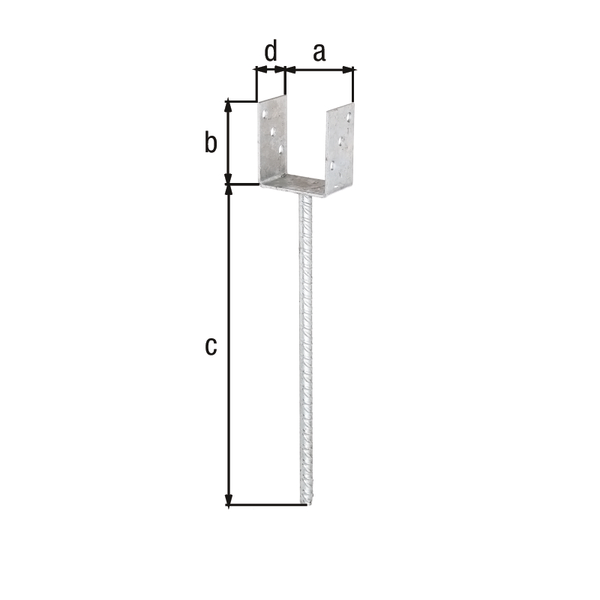

Article-No. 212711
Dimension a 121 mm
Dimension b 100 mm
Dimension c 400 mm
Dimension d 60 mm
  • Not statically suitable for high wooden and privacy fences. Suitable for timber construction and wooden fences as per the standard value table.
  • Suitable fasteners can be found in the range “Screws and accessories”.
