• Hook for screwing on, wrought iron, Material: raw steel, Surface: black powder-coated, Size back set-Ø: 16 mm, Distance pin - plate: 13.5 mm, Plate height: 150 mm, Plate width: 45 mm, Length of pin: 45 mm, Type: hammered, can be adjusted by: 20 mm, Material thickness: 6.00 mm, No. of holes: 4, Hole: Ø8.5 mm
  • Hook for screwing on, wrought iron, Material: raw steel, Surface: black powder-coated, Size back set-Ø: 16 mm, Distance pin - plate: 13.5 mm, Plate height: 150 mm, Plate width: 45 mm, Length of pin: 45 mm, Type: hammered, can be adjusted by: 20 mm, Material thickness: 6.00 mm, No. of holes: 4, Hole: Ø8.5 mm

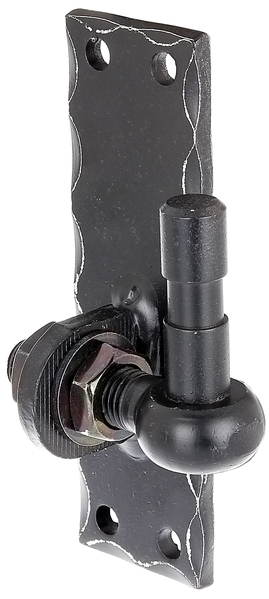

Hook for screwing on, wrought iron

Art.-No. 323066

raw steel, black powder-coated

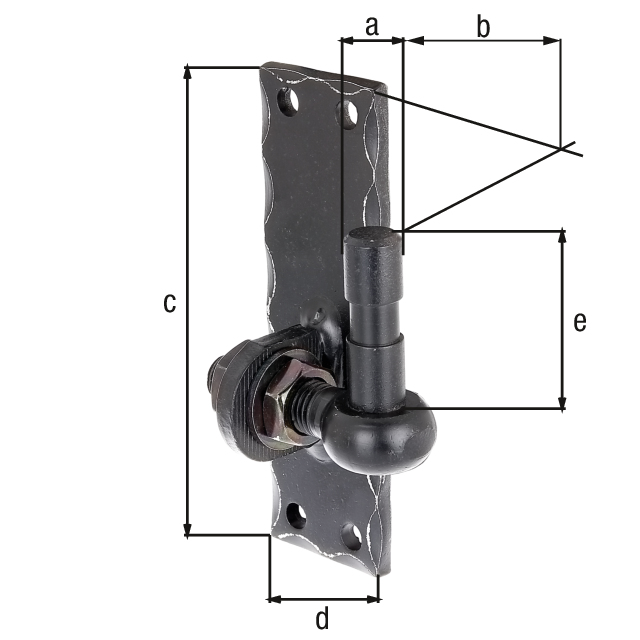

Dimension a-Ø:
16 mm
Dimension b:
13.5 mm
Dimension c:
150 mm
Dimension d:
45 mm
Dimension e:
45 mm
can be adjusted by:
20 mm
Fastening type:
for screwing on
Material thickness:
6 mm
Quantity x hole Ø:
4 x Ø8.5 mm
Material/surface:
raw steel, black powder-coated
Systems:
Band hooks and hooks
Surface / Colour:
black
Material:
Steel
Backset-Ø:
16 mm
Panel width:
45 mm
Type:
hammered
Weight per UQ (kg):
0.642 kg
Contents Unit:
1 Piece
  • Suitable fasteners can be found in the range “Screws and accessories”.
