• Hook on plate, DII, with countersunk screw holes, Material: raw steel, Surface: galvanised, thick-film passivated, Size back set-Ø: 10 mm, Distance pin - plate: 25 mm, Plate height: 90 mm, Plate width: 30 mm, Length of pin: 30 mm, Material thickness: 2.50 mm, No. of holes: 4, Hole: Ø5 mm
  • Hook on plate, DII, with countersunk screw holes, Material: raw steel, Surface: galvanised, thick-film passivated, Size back set-Ø: 10 mm, Distance pin - plate: 25 mm, Plate height: 90 mm, Plate width: 30 mm, Length of pin: 30 mm, Material thickness: 2.50 mm, No. of holes: 4, Hole: Ø5 mm

Hook on plate, DII

with countersunk screw holes

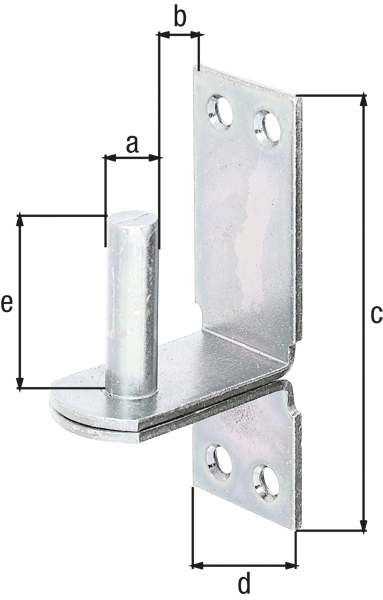

Art.-No. 311353
4 Variants
Dimension a-Ø:
10 mm
Dimension b:
25 mm
Dimension c:
90 mm
Dimension d:
30 mm
Dimension e:
30 mm
Fastening type:
for screwing on
Material thickness:
2.5 mm
Quantity x hole Ø:
4 x Ø5 mm
Material/surface:
raw steel, galvanised, thick-film passivated
Systems:
Band hooks and hooks
Surface / Colour:
VERZ
Material:
Steel
Backset-Ø:
10 mm
Panel width:
30 mm
Weight per UQ (kg):
0.112 kg
Contents Unit:
10 Piece
  • Suitable fasteners can be found in the range “Screws and accessories”.
