• Gate middle hinge, straight, pointed end, for frame gates, Material: raw steel, Surface: hot-dip galvanised, Height: 250 mm, Length: 400 mm, Roller dia.: 13 mm, Width: 40 mm, Distance centre of belt - centre of roller: 100 mm, Item description: Top, Material thickness: 5.00 mm, No. of holes: 5 / 1, Hole: Ø7 / Ø10 mm
  • Gate middle hinge, straight, pointed end, for frame gates, Material: raw steel, Surface: hot-dip galvanised, Height: 250 mm, Length: 400 mm, Roller dia.: 13 mm, Width: 40 mm, Distance centre of belt - centre of roller: 100 mm, Item description: Top, Material thickness: 5.00 mm, No. of holes: 5 / 1, Hole: Ø7 / Ø10 mm

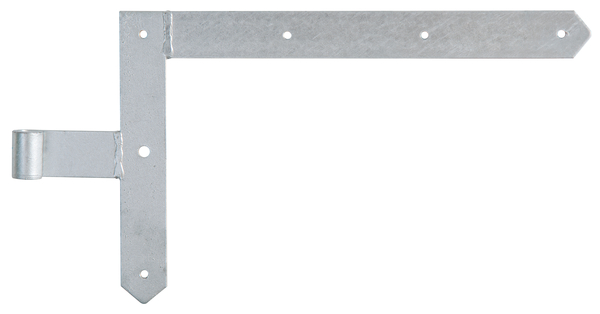

Gate middle hinge, straight, pointed end

for frame gates
Art.-No. 313166

raw steel, hot-dip galvanised

2 Variants
Item description:
Top

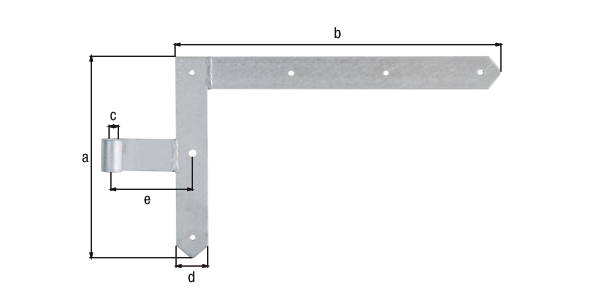

Dimension a:
250 mm
Dimension b:
400 mm
Dimension c-Ø:
13 mm
Dimension d:
40 mm
Dimension e:
100 mm
Fastening type:
for screwing on
Material thickness:
5 mm
Quantity x hole Ø:
5 x Ø7 mm
Quantity x hole Ø:
1 x Ø10 mm
Material/surface:
raw steel, hot-dip galvanised
Systems:
Band hooks and hooks
Surface / Colour:
FVZ
Material:
Steel
Roll Ø:
13 mm
Length:
400 mm
Width:
40 mm
Height:
250 mm
Weight per UQ (kg):
1.300 kg
Width of the roller:
40
Roller thickness:
5
Contents Unit:
1 Piece
Article-No.
Item description
Dimension a
Dimension b
Dimension c-Ø
Action
Article-No. 313166
Item description Top
Dimension a 250 mm
Dimension b 400 mm
Dimension c-Ø 13 mm
Article-No. 313173

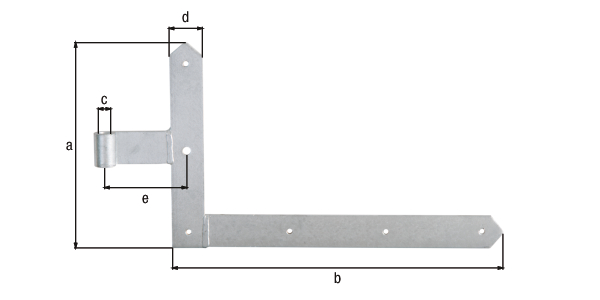

Item description Bottom
Dimension a 250 mm
Dimension b 400 mm
Dimension c-Ø 13 mm
  • Description at top/bottom applies to the left gate leaf. The bands on the right gate leaf must be replaced.
  • Suitable fasteners can be found in the range “Screws and accessories”.
