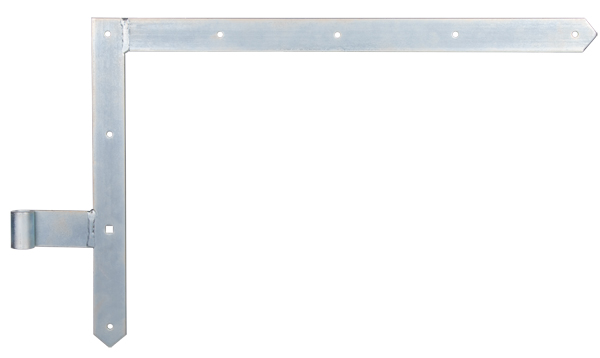

Gate middle hinge, straight, pointed end

Art.-No. 313104

raw steel, galvanised, thick-film passivated

4 Variants
Item description:
Top

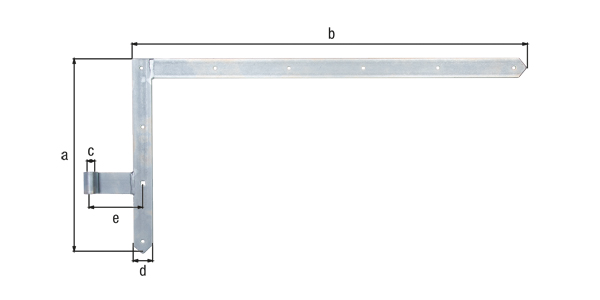

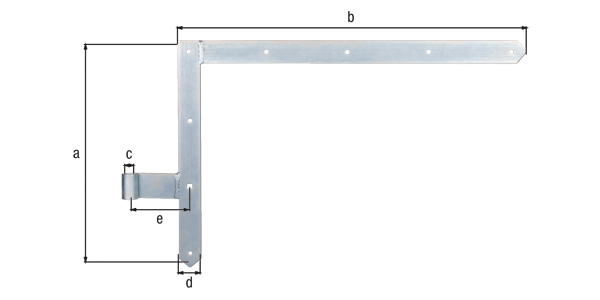

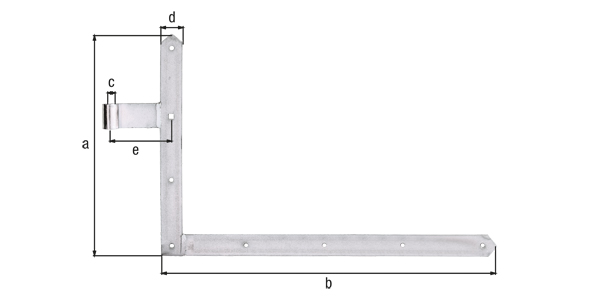

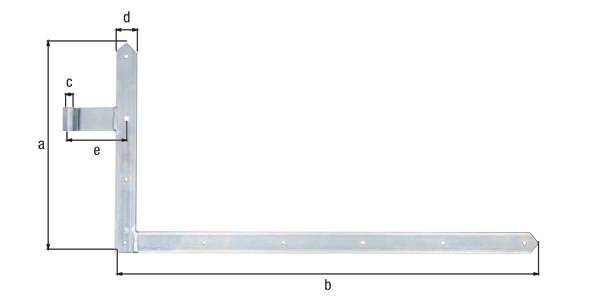

Dimension a:
400 mm
Dimension b:
600 mm
Dimension c-Ø:
16 mm
Dimension d:
40 mm
Dimension e:
105 mm
Fastening type:
for screwing on
Material thickness:
5 mm
Quantity x hole Ø:
7 x Ø7 mm
Quantity x hole (LxW):
1 x ( 9 x 9 ) mm
Material/surface:
raw steel, galvanised, thick-film passivated
Systems:
Band hooks and hooks
Surface / Colour:
VERZ
Material:
Steel
Roll Ø:
16 mm
Length:
600 mm
Width:
40 mm
Height:
400 mm
Weight per UQ (kg):
1.710 kg
Width of the roller:
40
Roller thickness:
5
Contents Unit:
1 Piece
  • Suitable fasteners can be found in the range “Screws and accessories”.
