• Gate middle hinge, straight, pointed end, for garage doors, Material: raw steel, Surface: hot-dip galvanised, Height: 600 mm, Length: 1000 mm, Roller dia.: 20 mm, Width: 60 mm, Distance centre of belt - centre of roller: 120 mm, Item description: Top, Material thickness: 8.00 mm, No. of holes: 9 / 1, Hole: Ø10 / 12 x 12 mm
  • Gate middle hinge, straight, pointed end, for garage doors, Material: raw steel, Surface: hot-dip galvanised, Height: 600 mm, Length: 1000 mm, Roller dia.: 20 mm, Width: 60 mm, Distance centre of belt - centre of roller: 120 mm, Item description: Top, Material thickness: 8.00 mm, No. of holes: 9 / 1, Hole: Ø10 / 12 x 12 mm

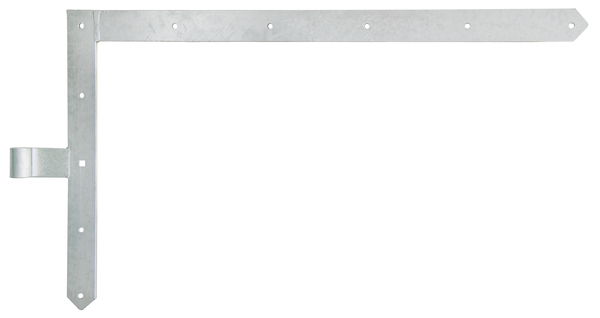

Gate middle hinge, straight, pointed end

for garage doors
Art.-No. 312947

raw steel, hot-dip galvanised

2 Variants

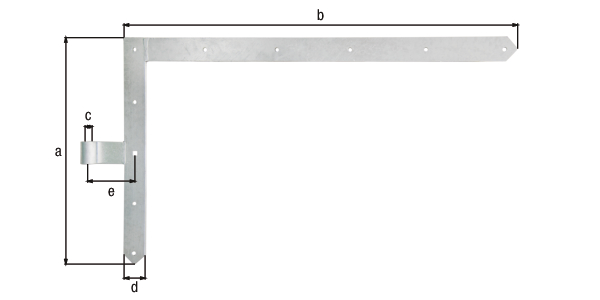

Item description:
Top
Dimension a:
600 mm
Dimension b:
1000 mm
Dimension c-Ø:
20 mm
Dimension d:
60 mm
Dimension e:
120 mm
Fastening type:
for screwing on
Material thickness:
8 mm
Quantity x hole Ø:
9 x Ø10 mm
Quantity x hole (LxW):
1 x ( 12 x 12 ) mm
Material/surface:
raw steel, hot-dip galvanised
Systems:
Band hooks and hooks
Surface / Colour:
FVZ
Material:
Steel
Roll Ø:
20 mm
Length:
1000 mm
Width:
60 mm
Height:
600 mm
Weight per UQ (kg):
6.410 kg
Width of the roller:
60
Roller thickness:
8
Contents Unit:
1 Piece
Article-No.
Item description
Dimension a
Dimension b
Dimension c-Ø
Action
Article-No. 312947
Item description Top
Dimension a 600 mm
Dimension b 1000 mm
Dimension c-Ø 20 mm

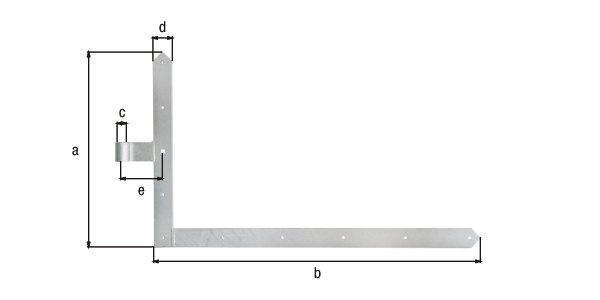

Article-No. 312978
Item description Bottom
Dimension a 600 mm
Dimension b 1000 mm
Dimension c-Ø 20 mm
  • Suitable fasteners can be found in the range “Screws and accessories”.
