• Gate middle hinge, straight, pointed end, Material: raw steel, Surface: galvanised, thick-film passivated, Height: 300 mm, Width: 40 mm, Roller dia.: 16 mm, Distance centre of belt - centre of roller: 105 mm, Type: light, Material thickness: 5.00 mm, No. of holes: 2 / 1, Hole: Ø7 / 9 x 9 mm
  • Gate middle hinge, straight, pointed end, Material: raw steel, Surface: galvanised, thick-film passivated, Height: 300 mm, Width: 40 mm, Roller dia.: 16 mm, Distance centre of belt - centre of roller: 105 mm, Type: light, Material thickness: 5.00 mm, No. of holes: 2 / 1, Hole: Ø7 / 9 x 9 mm

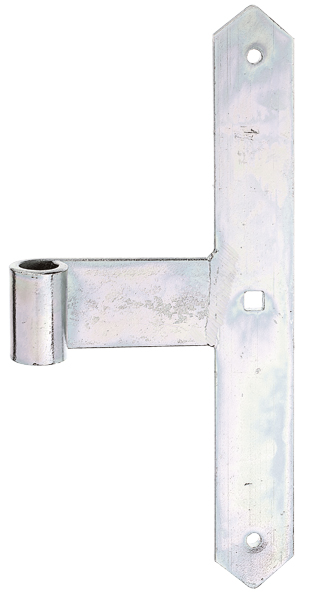

Gate middle hinge, straight, pointed end

Art.-No. 312909

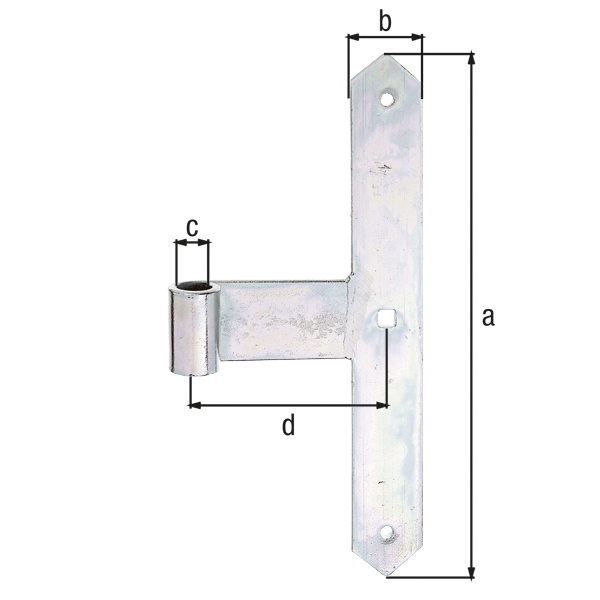

Dimension a:
300 mm
Dimension b:
40 mm
Dimension c-Ø:
16 mm
Dimension d:
105 mm
Fastening type:
for screwing on
Material thickness:
5 mm
Quantity x hole Ø:
2 x Ø7 mm
Quantity x hole (LxW):
1 x ( 9 x 9 ) mm
Material/surface:
raw steel, galvanised, thick-film passivated
Systems:
Band hooks and hooks
Surface / Colour:
VERZ
Material:
Steel
Roll Ø:
16 mm
Width:
40 mm
Height:
300 mm
Type:
light
Weight per UQ (kg):
0.700 kg
Contents Unit:
5 Piece
  • Suitable fasteners can be found in the range “Screws and accessories”.
