• Hook for screwing on, with countersunk screw holes, Material: raw steel, Surface: galvanised, thick-film passivated, Size back set-Ø: 13 mm, Distance pin - plate: 5 - 23 mm, Plate height: 100 mm, Plate width: 40 mm, Length of pin: 40 mm, Type: adjustable, Material thickness: 4.50 mm, No. of holes: 4, Hole: Ø7 mm, CutCase
  • Hook for screwing on, with countersunk screw holes, Material: raw steel, Surface: galvanised, thick-film passivated, Size back set-Ø: 13 mm, Distance pin - plate: 5 - 23 mm, Plate height: 100 mm, Plate width: 40 mm, Length of pin: 40 mm, Type: adjustable, Material thickness: 4.50 mm, No. of holes: 4, Hole: Ø7 mm, CutCase

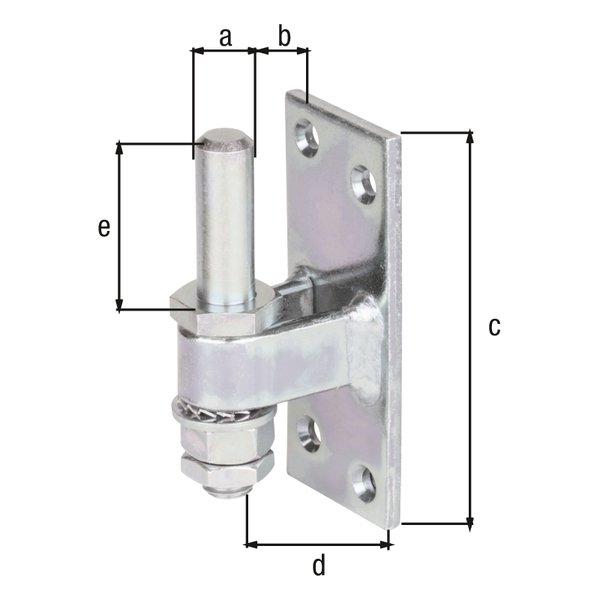

Hook for screwing on

with countersunk screw holes
Art.-No. 311131

raw steel, galvanised, thick-film passivated

2 Variants
Dimension a-Ø:
13 mm
Dimension b:
5 - 23 mm
Dimension c:
100 mm
Dimension d:
40 mm
Dimension e:
40 mm
Fastening type:
for screwing on
Material thickness:
4.5 mm
Quantity x hole Ø:
4 x Ø7 mm
Material/surface:
raw steel, galvanised, thick-film passivated
Systems:
Band hooks and hooks
Surface / Colour:
VERZ
Material:
Steel
Backset-Ø:
13 mm
Panel width:
40 mm
Type:
adjustable
Weight per UQ (kg):
0.352 kg
Contents Unit:
10 Piece
Article-No.
Dimension a-Ø
Dimension b
Dimension c
Dimension d
Action
Article-No. 311131
Dimension a-Ø 13 mm
Dimension b 5 - 23 mm
Dimension c 100 mm
Dimension d 40 mm

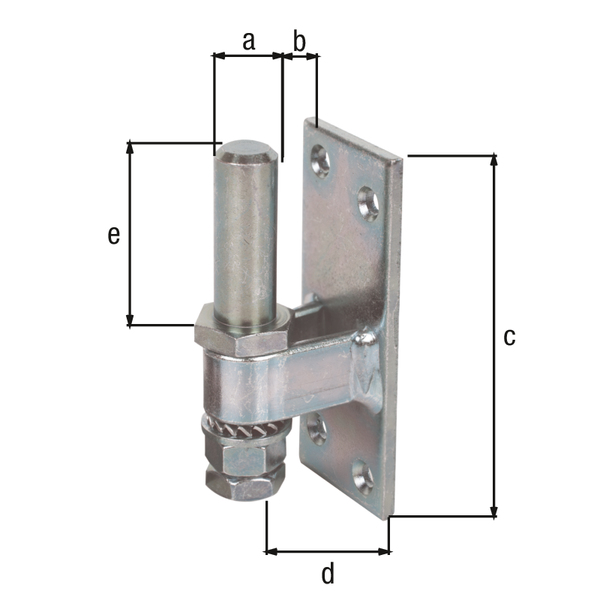

Article-No. 311148
Dimension a-Ø 16 mm
Dimension b 5 - 25 mm
Dimension c 100 mm
Dimension d 40 mm
  • Suitable fasteners can be found in the range “Screws and accessories”.
