• Hook on plate, DI, Material: raw steel, Surface: black cataphoretic coating, Size back set-Ø: 14 mm, Distance pin - plate: 12 mm, Plate height: 130 mm, Plate width: 40 mm, Length of pin: 45 mm, Material thickness: 4.00 mm, No. of holes: 4, Hole: Ø7 mm
  • Hook on plate, DI, Material: raw steel, Surface: black cataphoretic coating, Size back set-Ø: 14 mm, Distance pin - plate: 12 mm, Plate height: 130 mm, Plate width: 40 mm, Length of pin: 45 mm, Material thickness: 4.00 mm, No. of holes: 4, Hole: Ø7 mm

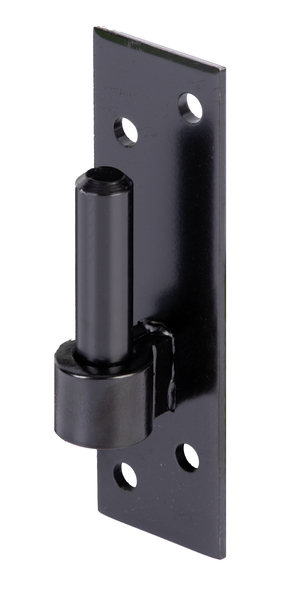

Hook on plate, DI

Art.-No. 306687

raw steel, black cataphoretic coating

2 Variants

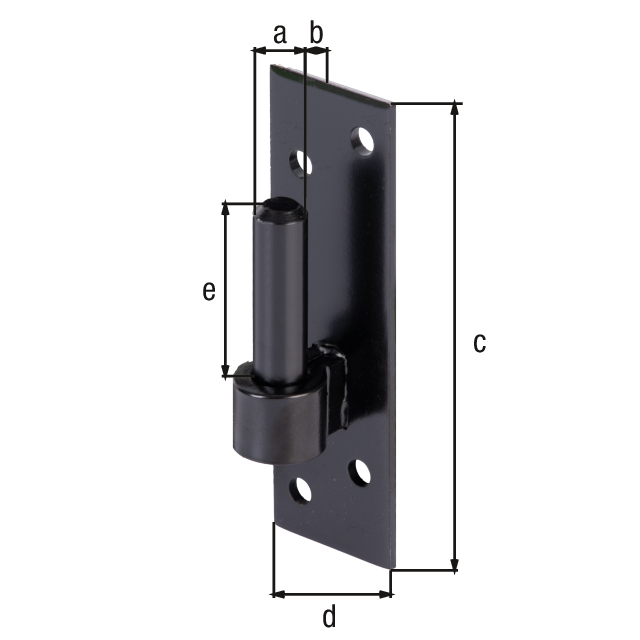

Dimension a-Ø:
14 mm
Dimension b:
12 mm
Dimension c:
130 mm
Dimension d:
40 mm
Dimension e:
45 mm
Material thickness:
4 mm
Quantity x hole Ø:
4 x Ø7 mm
Material/surface:
raw steel, black cataphoretic coating
Systems:
Band hooks and hooks,Wooden gate fittings,Hinges and hangers
Backset-Ø:
14 mm
Panel width:
40 mm
Weight per UQ (kg):
0.31 kg
Contents Unit:
10 Piece
Article-No.
Dimension a-Ø
Dimension b
Dimension c
Dimension d
Action
Article-No. 306687
Dimension a-Ø 14 mm
Dimension b 12 mm
Dimension c 130 mm
Dimension d 40 mm

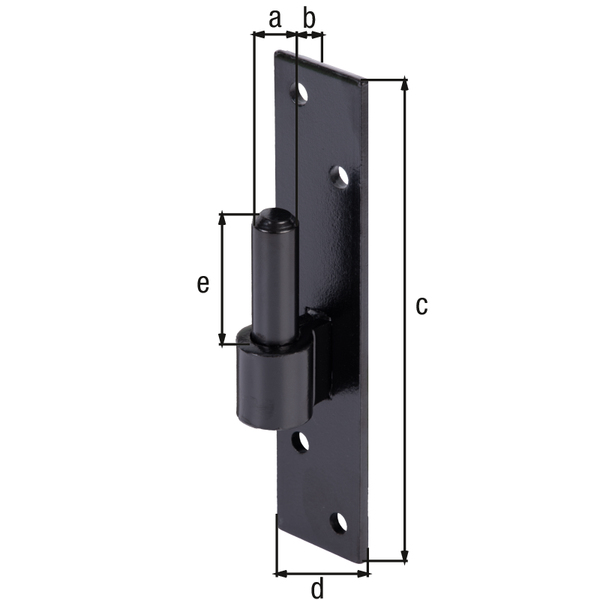

Article-No. 306694
Dimension a-Ø 16 mm
Dimension b 13 mm
Dimension c 180 mm
Dimension d 40 mm
  • Suitable fasteners can be found in the range “Screws and accessories”.
