• Hook on plate, DI, Southern German look, with countersunk screw holes, Material: raw steel, Surface: galvanised, thick-film passivated, Size back set-Ø: 13 mm, Distance pin - plate: 10 mm, Plate height: 110 mm, Plate width: 36 mm, Length of pin: 45 mm, Material thickness: 4.00 mm, No. of holes: 4, Hole: Ø6 mm
  • Hook on plate, DI, Southern German look, with countersunk screw holes, Material: raw steel, Surface: galvanised, thick-film passivated, Size back set-Ø: 13 mm, Distance pin - plate: 10 mm, Plate height: 110 mm, Plate width: 36 mm, Length of pin: 45 mm, Material thickness: 4.00 mm, No. of holes: 4, Hole: Ø6 mm

Hook on plate, DI

with countersunk screw holes
Art.-No. 318772

raw steel, galvanised, thick-film passivated

2 Variants

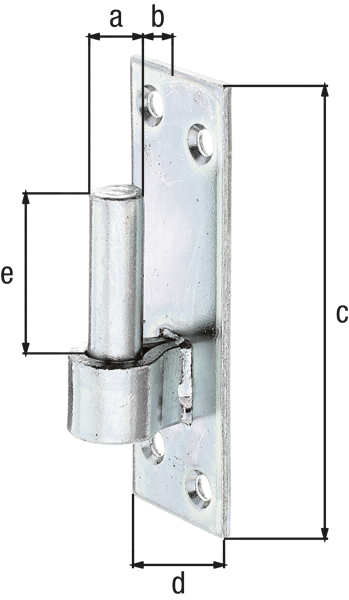

Dimension a-Ø:
13 mm
Dimension b:
10 mm
Dimension c:
110 mm
Dimension d:
36 mm
Dimension e:
45 mm
Fastening type:
for screwing on
Material thickness:
4 mm
Quantity x hole Ø:
4 x Ø6 mm
Material/surface:
raw steel, galvanised, thick-film passivated
Systems:
Band hooks and hooks
Surface / Colour:
VERZ
Material:
Steel
Backset-Ø:
13 mm
Panel width:
36 mm
Weight per UQ (kg):
0.220 kg
Contents Unit:
10 Piece
Article-No.
Dimension a-Ø
Dimension b
Dimension c
Dimension d
Action
Article-No. 318772
Dimension a-Ø 13 mm
Dimension b 10 mm
Dimension c 110 mm
Dimension d 36 mm

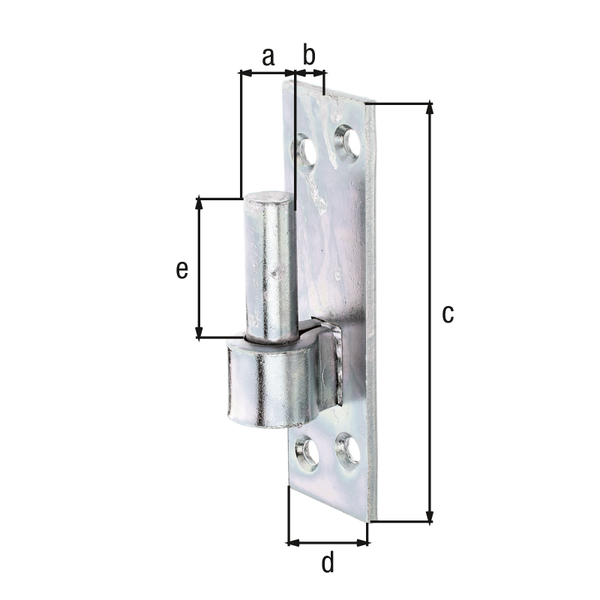

Article-No. 318796
Dimension a-Ø 16 mm
Dimension b 13 mm
Dimension c 133 mm
Dimension d 40 mm
  • Suitable fasteners can be found in the range “Screws and accessories”.
