• Band hook, cranked, rounded, Material: stainless steel, Length: 500 mm, Roller dia.: 13 mm, Width: 40 mm, Material thickness: 4.00 mm, No. of holes: 3 / 1, Hole: Ø7 / 9 x 9 mm
  • Band hook, cranked, rounded, Material: stainless steel, Length: 500 mm, Roller dia.: 13 mm, Width: 40 mm, Material thickness: 4.00 mm, No. of holes: 3 / 1, Hole: Ø7 / 9 x 9 mm

Band hook, cranked, rounded

Art.-No. 318185

stainless steel

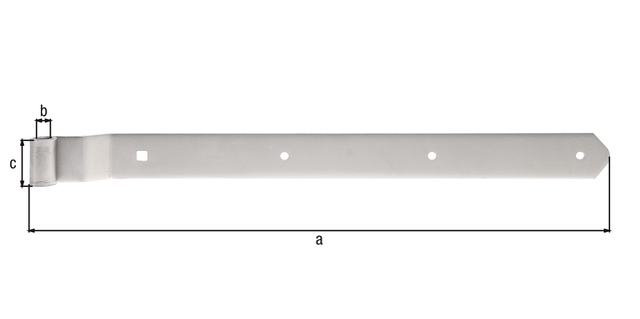

Dimension a:
500 mm
Dimension b-Ø:
13 mm
Dimension c:
40 mm
Fastening type:
for screwing on
Material thickness:
4 mm
Offset:
15 mm
Quantity x hole Ø:
3 x Ø7 mm
Quantity x hole (LxW):
1 x ( 9 x 9 ) mm
Material/surface:
stainless steel
Systems:
Band hooks and hooks
Material:
Stainless steel
Roll Ø:
13 mm
Length:
500 mm
Width:
40 mm
Weight per UQ (kg):
0.618 kg
Contents Unit:
4 Piece
  • In combination with the hook on plate type DI, the gate closes almost in line with the post!
  • Suitable fasteners can be found in the range “Screws and accessories”.
