• Band hook, straight, rounded, adjustable, Material: raw steel, Surface: galvanised, thick-film passivated, Length: 660 mm, Width: 40 mm, can be adjusted by: 30 mm, Material thickness: 5.00 mm, Thread: M16, No. of holes: 4 / 1 / 4, Hole: Ø7 / 9 x 9 / Ø6 mm
  • Band hook, straight, rounded, adjustable, Material: raw steel, Surface: galvanised, thick-film passivated, Length: 660 mm, Width: 40 mm, can be adjusted by: 30 mm, Material thickness: 5.00 mm, Thread: M16, No. of holes: 4 / 1 / 4, Hole: Ø7 / 9 x 9 / Ø6 mm

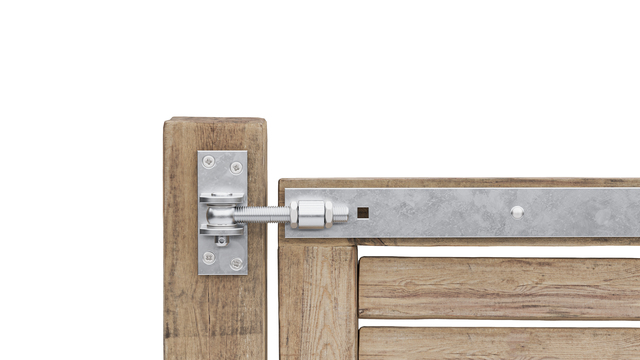

Band hook, straight, rounded, adjustable

Art.-No. 318260
2 Variants
Dimension a:
660 mm
Dimension b:
40 mm
can be adjusted by:
30 mm
Thread:
M16
Fastening type:
for screwing on
Material thickness:
5 mm
Quantity x hole Ø:
4 x Ø7 mm
Quantity x hole (LxW):
1 x ( 9 x 9 ) mm
Quantity x hole Ø:
4 x Ø6 mm
Material/surface:
raw steel, galvanised, thick-film passivated
Systems:
Band hooks and hooks
Surface / Colour:
VERZ
Material:
Steel
Length:
660 mm
Width:
40 mm
Weight per UQ (kg):
1.5 kg
Contents Unit:
4 Piece
Article-No.
Dimension a
Dimension b
can be adjusted by
Thread
Action
Article-No. 318253
Dimension a 463 mm
Dimension b 40 mm
can be adjusted by 30 mm
Thread M12
Article-No. 318260
Dimension a 660 mm
Dimension b 40 mm
can be adjusted by 30 mm
Thread M16
  • The band hook allows the gate to be adjusted after it has been mounted.
  • Screw-on hooks included.
  • Suitable fasteners can be found in the range “Screws and accessories”.
