• Tee hinge, Material: raw steel, Surface: galvanised, thick-film passivated, Height: 140 mm, Width: 50 mm, Roller dia.: 13 mm, Distance centre of belt - centre of roller: 75 mm, Material thickness: 2.00 mm, No. of holes: 8 / 8 / 1, Hole: Ø5 / 5.5 x 5.5 / 9 x 9 mm
  • Tee hinge, Material: raw steel, Surface: galvanised, thick-film passivated, Height: 140 mm, Width: 50 mm, Roller dia.: 13 mm, Distance centre of belt - centre of roller: 75 mm, Material thickness: 2.00 mm, No. of holes: 8 / 8 / 1, Hole: Ø5 / 5.5 x 5.5 / 9 x 9 mm

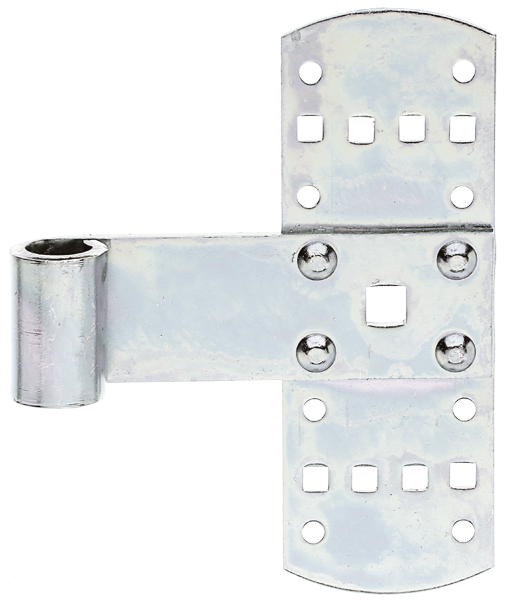

Tee hinge

Art.-No. 314996

raw steel, galvanised, thick-film passivated

2 Variants

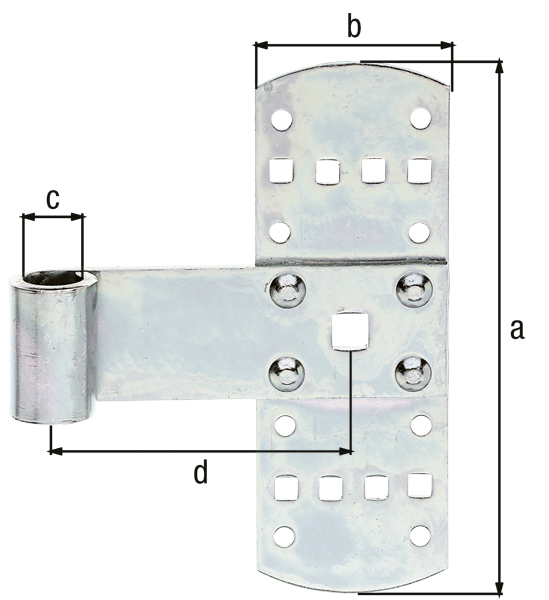

Dimension a:
140 mm
Dimension b:
50 mm
Dimension c-Ø:
13 mm
Dimension d:
75 mm
Fastening type:
for screwing on
Material thickness:
2 mm
Quantity x hole Ø:
8 x Ø5 mm
Quantity x hole (LxW):
8 x ( 5.5 x 5.5 ) mm
Quantity x hole (LxW):
1 x ( 9 x 9 ) mm
Material/surface:
raw steel, galvanised, thick-film passivated
Systems:
Band hooks and hooks
Surface / Colour:
VERZ
Material:
Steel
Roll Ø:
13 mm
Width:
50 mm
Height:
140 mm
Weight per UQ (kg):
0.273 kg
Width of the roller:
35
Roller thickness:
4
Contents Unit:
10 Piece
Article-No.
Dimension a
Dimension b
Dimension c-Ø
Dimension d
Action
Article-No. 314996
Dimension a 140 mm
Dimension b 50 mm
Dimension c-Ø 13 mm
Dimension d 75 mm

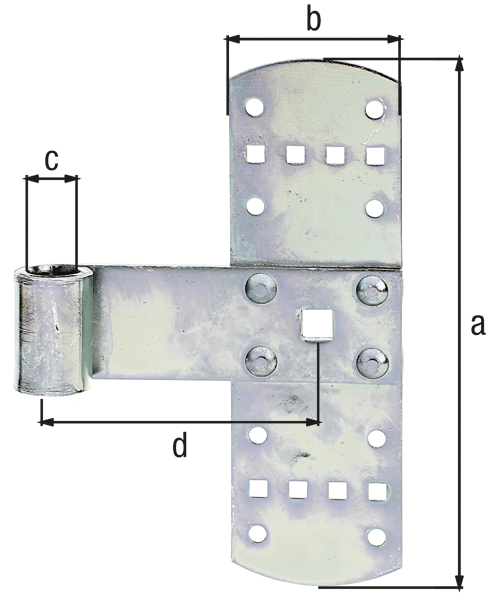

Article-No. 315047
Dimension a 160 mm
Dimension b 50 mm
Dimension c-Ø 13 mm
Dimension d 75 mm
  • Suitable fasteners can be found in the range “Screws and accessories”.
