Swing hook with thread

Art.-No. 204532

raw steel, blue galvanised, for screwing through

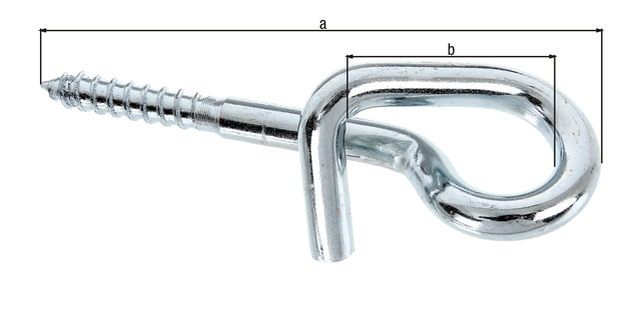

Dimension a:
180 mm
Dimension b-Ø:
10 mm
Thread:
M12 x 80 mm
Fastening type:
ZDSCHR
Material/surface:
raw steel, blue galvanised, for screwing through
Surface / Colour:
VERZ
Material:
Steel
:
10 mm
Length:
180 mm
Weight per UQ (kg):
0.264 kg
Contents Unit:
5 Piece

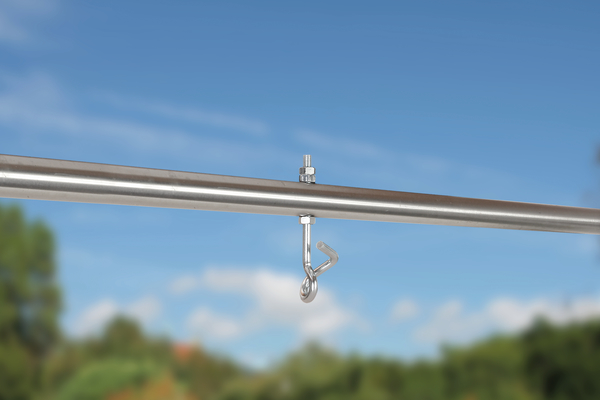

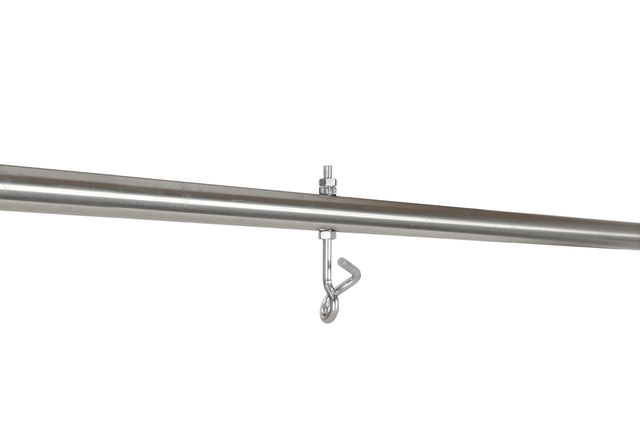

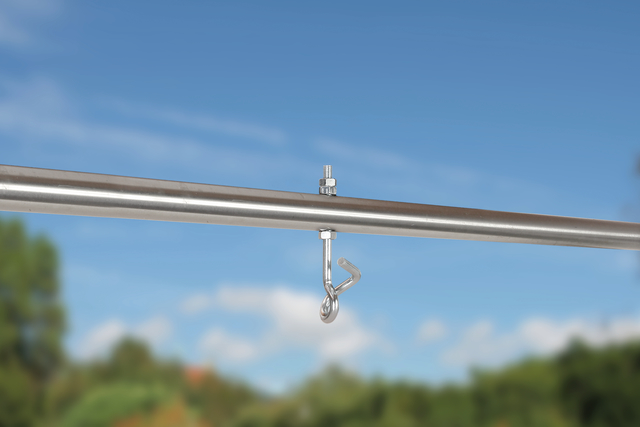

  • For swing hooks with metric thread, the lower nut must be screwed tightly to the end of the thread. The thread thickness of the hook is 12 +⁄- 0.5 mm; the hole must be 12 + 0.5 mm. The upper nut must be locked. A constant check of the nuts must be carried out. The swing hook must not move in its support under any circumstances.
  • Important: For all methods of fastening, the eyelets of the swing hooks must be transverse to the direction of the swing. All locations that are in contact with metal parts must always be well lubricated. All of the load-bearing parts of a swing must be inspected regularly. Only use in pairs.
