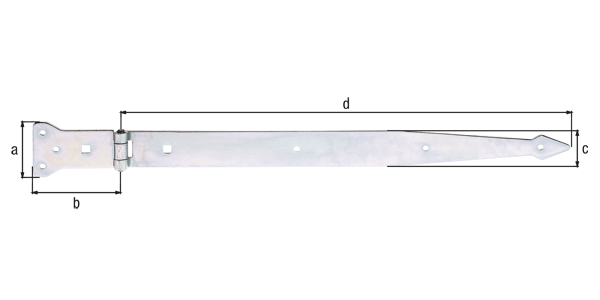

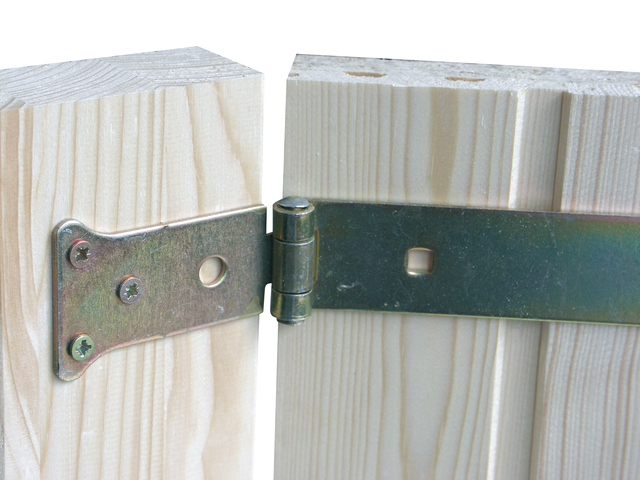

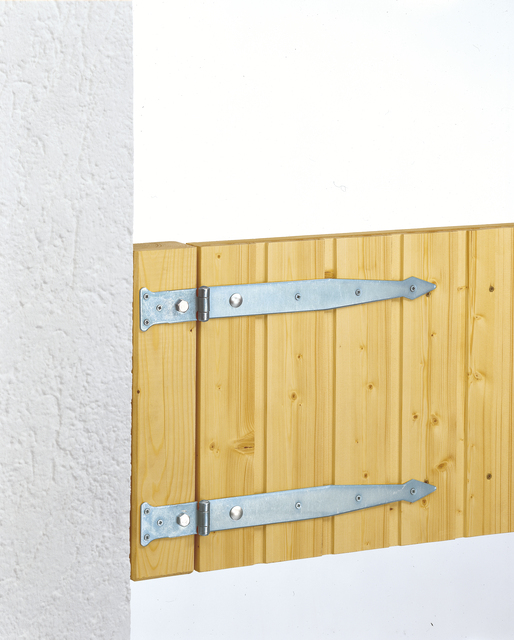

Strap hinge
with riveted pin
Art.-No. 315443
raw steel, galvanised, thick-film passivated
- Dimension a:
- 500 mm
- Dimension b:
- 101 mm
- Dimension c:
- 63 mm
- Dimension d:
- 45 mm
- Material thickness:
- 3.75 mm
- Quantity x hole Ø:
- 6 x Ø6 mm
- Quantity x hole (LxW):
- 2 x ( 9 x 9 ) mm
- Material/surface:
- raw steel, galvanised, thick-film passivated
- Surface / Colour:
- VERZ
- Material:
- Steel
- Belt length:
- 500 mm
- Type:
- heavy
- Weight per UQ (kg):
- 0.800 kg
- Contents Unit:
- 10 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action

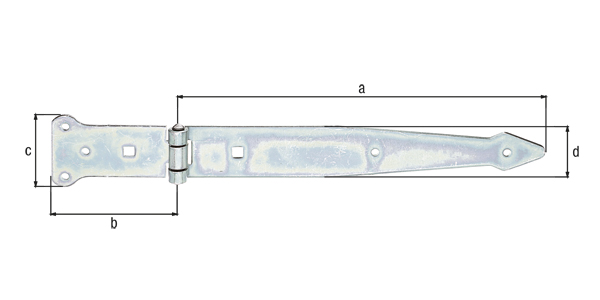

Article-No.
315344
Dimension a
300 mm
Dimension b
101 mm
Dimension c
63 mm
Dimension d
45 mm

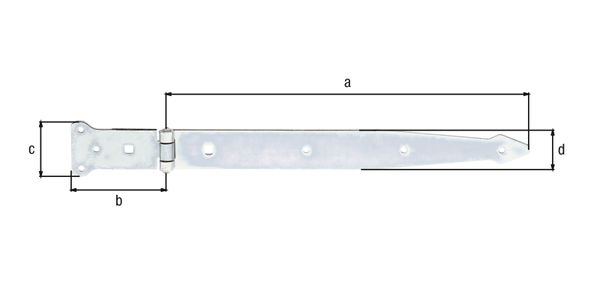

Article-No.
315399
Dimension a
400 mm
Dimension b
101 mm
Dimension c
63 mm
Dimension d
45 mm
Article-No.
315443
Dimension a
500 mm
Dimension b
101 mm
Dimension c
63 mm
Dimension d
45 mm
Article-No.
315498
Dimension a
600 mm
Dimension b
101 mm
Dimension c
63 mm
Dimension d
45 mm
- Suitable fasteners can be found in the range “Screws and accessories”.
