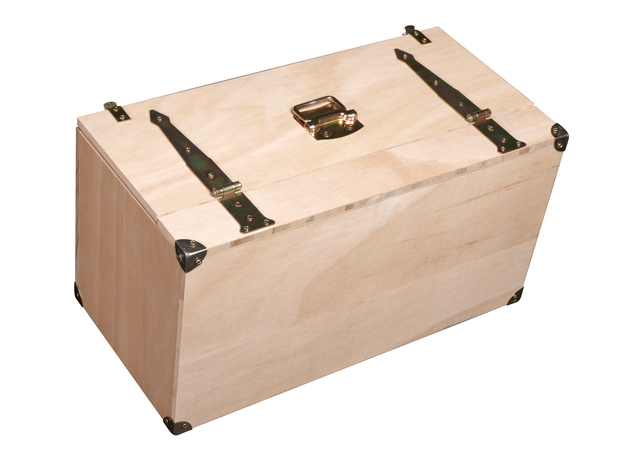

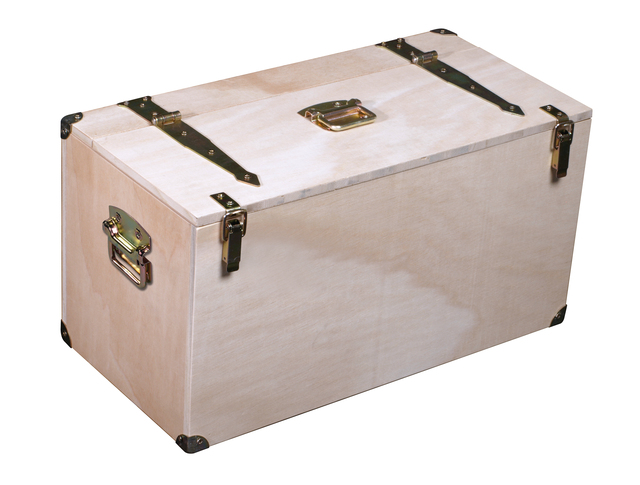

Strap hinge
with riveted pin
Art.-No. 315146
raw steel, galvanised, thick-film passivated
- Dimension a:
- 252 mm
- Dimension b:
- 77 mm
- Dimension c:
- 48 mm
- Dimension d:
- 35 mm
- Material thickness:
- 2.5 mm
- Quantity x hole Ø:
- 5 x Ø6 mm
- Quantity x hole Ø:
- 1 x Ø9 mm
- Quantity x hole (LxW):
- 1 x ( 7 x 7 ) mm
- Material/surface:
- raw steel, galvanised, thick-film passivated
- Surface / Colour:
- VERZ
- Material:
- Steel
- Belt length:
- 252 mm
- Type:
- light
- Weight per UQ (kg):
- 0.213 kg
- Contents Unit:
- 10 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action
Article-No.
315092
Dimension a
202 mm
Dimension b
77 mm
Dimension c
48 mm
Dimension d
35 mm
Article-No.
315146
Dimension a
252 mm
Dimension b
77 mm
Dimension c
48 mm
Dimension d
35 mm
Article-No.
315191
Dimension a
302 mm
Dimension b
77 mm
Dimension c
48 mm
Dimension d
35 mm
- Suitable fasteners can be found in the range “Screws and accessories”.
