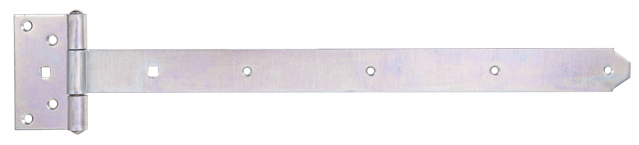

Tee hinge
with riveted pin
Art.-No. 311018
raw steel, galvanised, thick-film passivated
- Dimension a:
- 491 mm
- Dimension b:
- 59 mm
- Dimension c:
- 103 mm
- Dimension d:
- 40 mm
- Material thickness:
- 3.50 mm
- Quantity x hole Ø:
- 8 x Ø6.5 mm
- Quantity x hole (LxW):
- 2 x ( 9 x 9 ) mm
- Material/surface:
- raw steel, galvanised, thick-film passivated
- Surface / Colour:
- VERZ
- Material:
- Steel
- Belt length:
- 491 mm
- Type:
- heavy
- Weight per UQ (kg):
- 0.871 kg
- Contents Unit:
- 10 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action
Article-No.
310912
Dimension a
291 mm
Dimension b
59 mm
Dimension c
103 mm
Dimension d
40 mm
Article-No.
310967
Dimension a
391 mm
Dimension b
59 mm
Dimension c
103 mm
Dimension d
40 mm
Article-No.
311018
Dimension a
491 mm
Dimension b
59 mm
Dimension c
103 mm
Dimension d
40 mm
Article-No.
311063
Dimension a
591 mm
Dimension b
59 mm
Dimension c
103 mm
Dimension d
40 mm
- Suitable fasteners can be found in the range “Screws and accessories”.
