• Tee hinge, with press-fitted pin, Material: raw steel, Surface: black cataphoretic coating, Belt length: 391 mm, Hinge width: 45 mm, Hinge length: 115 mm, Belt width: 30 mm, Material thickness: 4.00 mm, No. of holes: 2 / 5, Hole: Ø6.8 / 7.5 x 7.5 mm
  • Tee hinge, with press-fitted pin, Material: raw steel, Surface: black cataphoretic coating, Belt length: 391 mm, Hinge width: 45 mm, Hinge length: 115 mm, Belt width: 30 mm, Material thickness: 4.00 mm, No. of holes: 2 / 5, Hole: Ø6.8 / 7.5 x 7.5 mm

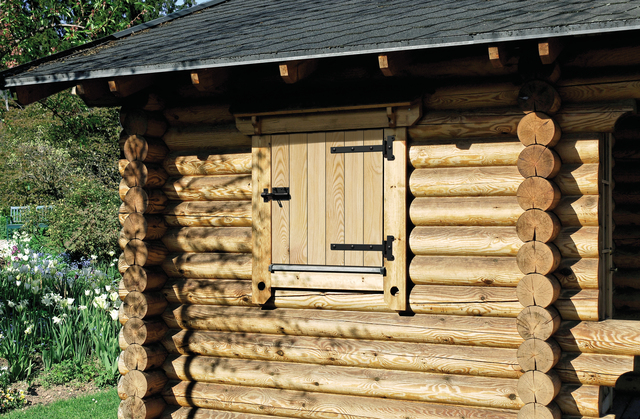

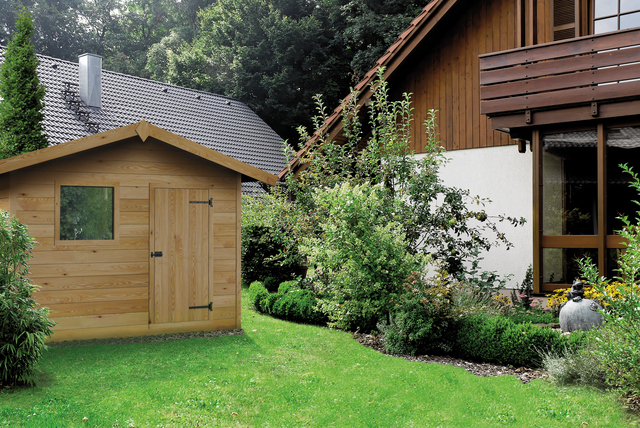

Tee hinge

with press-fitted pin
Art.-No. 307011

raw steel, black cataphoretic coating

4 Variants
Dimension a:
391 mm
Dimension b:
45 mm
Dimension c:
115 mm
Dimension d:
30 mm
Material thickness:
4 mm
Quantity x hole Ø:
2 x Ø6.8 mm
Quantity x hole (LxW):
5 x ( 7.5 x 7.5 ) mm
Material/surface:
raw steel, black cataphoretic coating
Systems:
Band hooks and hooks,Wooden gate fittings,Hinges and hangers
Belt length:
391 mm
Weight per UQ (kg):
0.590 kg
Contents Unit:
10 Piece
