• Tee hinge, with riveted pin, Material: raw steel, Surface: galvanised, thick-film passivated, Belt length: 242.5 mm, Hinge width: 45 mm, Hinge length: 90 mm, Belt width: 34 mm, Type: light, Material thickness: 2.00 mm, No. of holes: 6 / 2, Hole: Ø6.5 / 9 x 9 mm
  • Tee hinge, with riveted pin, Material: raw steel, Surface: galvanised, thick-film passivated, Belt length: 242.5 mm, Hinge width: 45 mm, Hinge length: 90 mm, Belt width: 34 mm, Type: light, Material thickness: 2.00 mm, No. of holes: 6 / 2, Hole: Ø6.5 / 9 x 9 mm

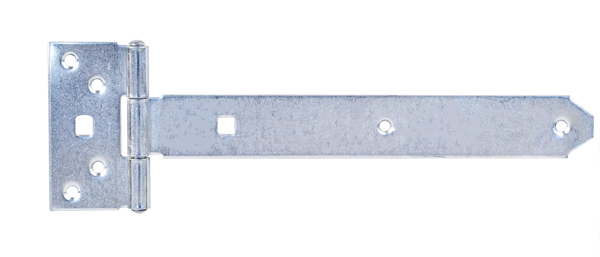

Tee hinge

with riveted pin
Art.-No. 310660
4 Variants
Dimension a:
242.5 mm
Dimension b:
45 mm
Dimension c:
90 mm
Dimension d:
34 mm
Fastening type:
for screwing on
Material thickness:
2 mm
Quantity x hole Ø:
6 x Ø6.5 mm
Quantity x hole (LxW):
2 x ( 9 x 9 ) mm
Material/surface:
raw steel, galvanised, thick-film passivated
Systems:
Band hooks and hooks
Surface / Colour:
VERZ
Material:
Steel
Belt length:
242.5 mm
Type:
light
Weight per UQ (kg):
0.330 kg
Contents Unit:
10 Piece
  • Suitable fasteners can be found in the range “Screws and accessories”.
