• Universal post welded directly to the plate, for fixing to the stringer side of stairs, walls etc., Material: raw steel, Surface: hot-dip galvanised, for screwing on, Plate length: 100 mm, Plate width: 100 mm, Width post: 30 mm, Depth of post: 30 mm, Length: 1150 mm, Material thickness: 2.00 mm, No. of holes: 4, Hole: Ø10.5 mm
  • Universal post welded directly to the plate, for fixing to the stringer side of stairs, walls etc., Material: raw steel, Surface: hot-dip galvanised, for screwing on, Plate length: 100 mm, Plate width: 100 mm, Width post: 30 mm, Depth of post: 30 mm, Length: 1150 mm, Material thickness: 2.00 mm, No. of holes: 4, Hole: Ø10.5 mm

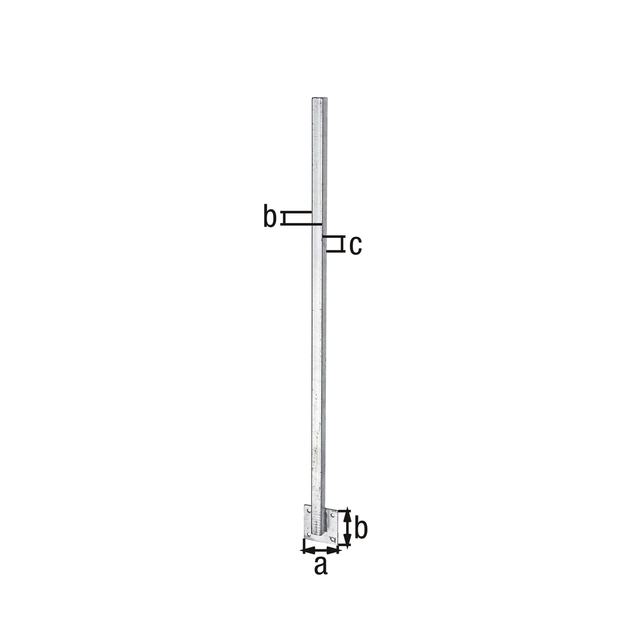

Universal post welded directly to the plate

for fixing to the stringer side of stairs, walls etc.
Art.-No. 700225

raw steel, hot-dip galvanised, for screwing on

Dimension a:
100 mm
Dimension b:
100 mm
Dimension c:
30 mm
Dimension d:
30 mm
Length:
1150 mm
Fastening type:
for screwing on
Material thickness:
2 mm
Quantity x hole Ø:
4 x Ø10.5 mm
Material/surface:
raw steel, hot-dip galvanised, for screwing on
Systems:
PF
Surface / Colour:
FVZ
Material:
Steel
Panel width:
100 mm
Panel length:
100 mm
Weight per UQ (kg):
2.410 kg
Contents Unit:
1 Piece
