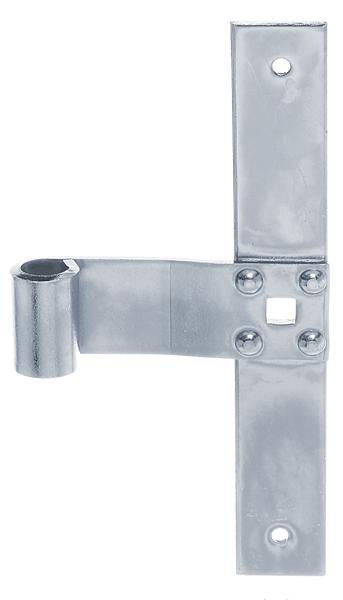

Window shutter middle hinge, straight, straight end
Art.-No. 313548

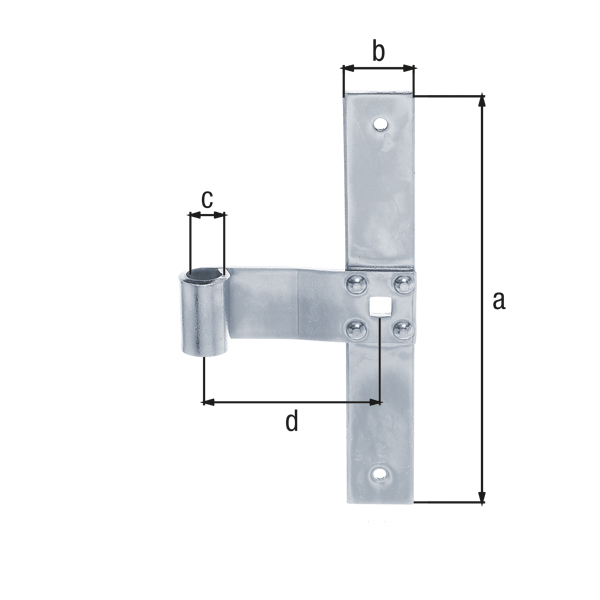

- Dimension a:
- 200 mm
- Dimension b:
- 30 mm
- Dimension c-Ø:
- 13 mm
- Dimension d:
- 75 mm
- Fastening type:
- for screwing on
- Material thickness:
- 3 mm
- Quantity x hole Ø:
- 2 x Ø5.5 mm
- Quantity x hole (LxW):
- 1 x ( 9 x 9 ) mm
- Material/surface:
- raw steel, galvanised, thick-film passivated
- Surface / Colour:
- VERZ
- Material:
- Steel
- Roll Ø:
- 13 mm
- Width:
- 30 mm
- Height:
- 200 mm
- Weight per UQ (kg):
- 0.300 kg
- Width of the roller:
- 35
- Roller thickness:
- 4
- Contents Unit:
- 5 Piece
- Suitable fasteners can be found in the range “Screws and accessories”.
