• Window shutter corner hinge, straight, straight end, Material: raw steel, Surface: galvanised, thick-film passivated, Height: 250 mm, Length: 200 mm, Roller dia.: 13 mm, Width: 30 mm, Distance centre of belt - centre of roller: 75 mm, Item description: Top, Material thickness: 3.00 mm, No. of holes: 5 / 1, Hole: Ø5.5 / 9 x 9 mm
  • Window shutter corner hinge, straight, straight end, Material: raw steel, Surface: galvanised, thick-film passivated, Height: 250 mm, Length: 200 mm, Roller dia.: 13 mm, Width: 30 mm, Distance centre of belt - centre of roller: 75 mm, Item description: Top, Material thickness: 3.00 mm, No. of holes: 5 / 1, Hole: Ø5.5 / 9 x 9 mm

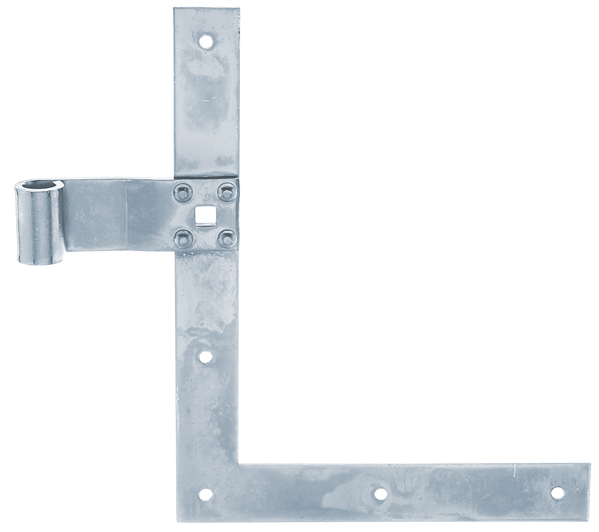

Window shutter corner hinge, straight, straight end

Art.-No. 313326
Item description:
Top
Dimension a:
250 mm
Dimension b:
200 mm
Dimension c-Ø:
13 mm
Dimension d:
30 mm
Dimension e:
75 mm
Fastening type:
for screwing on
Material thickness:
3 mm
Quantity x hole Ø:
5 x Ø5.5 mm
Quantity x hole (LxW):
1 x ( 9 x 9 ) mm
Material/surface:
raw steel, galvanised, thick-film passivated
Surface / Colour:
VERZ
Material:
Steel
Roll Ø:
13 mm
Length:
200 mm
Width:
30 mm
Height:
250 mm
Weight per UQ (kg):
0.440 kg
Width of the roller:
35
Roller thickness:
4
Contents Unit:
5 Piece
Article-No.
Item description
Dimension a
Dimension b
Dimension c-Ø
Action
Article-No. 313326
Item description Top
Dimension a 250 mm
Dimension b 200 mm
Dimension c-Ø 13 mm
Article-No. 313319
Item description Bottom
Dimension a 250 mm
Dimension b 200 mm
Dimension c-Ø 13 mm
  • Suitable fasteners can be found in the range “Screws and accessories”.
