• HE post support, Material: raw steel, Surface: sendzimir galvanised, Width: 55 mm, Height: 180 mm, Guide height: 30 mm, Material thickness: 3.00 mm, No. of holes: 2 / 12, Hole: Ø13 / Ø5 mm, Designed for standard cross-sections made from solid structural timber (SST) and glued laminated timber (glulam), CutCase
  • HE post support, Material: raw steel, Surface: sendzimir galvanised, Width: 55 mm, Height: 180 mm, Guide height: 30 mm, Material thickness: 3.00 mm, No. of holes: 2 / 12, Hole: Ø13 / Ø5 mm, Designed for standard cross-sections made from solid structural timber (SST) and glued laminated timber (glulam), CutCase

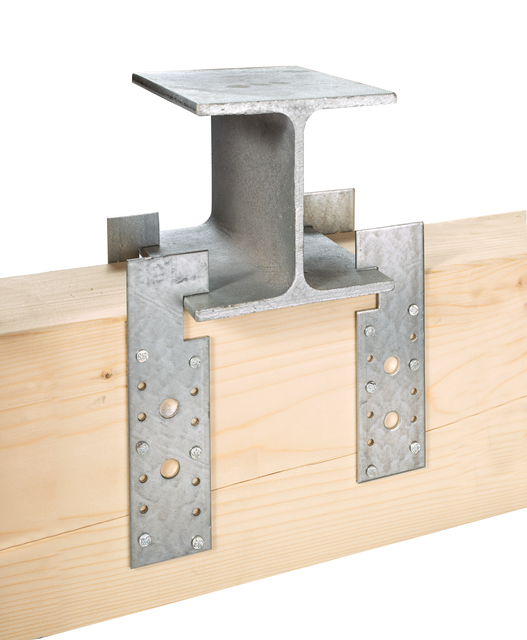

HE post support

Art.-No. 339982

raw steel, sendzimir galvanised

2 Variants
Dimension a:
55 mm
Dimension b:
180 mm
Dimension c:
30 mm
Fastening type:
for screwing on
Material thickness:
3 mm
Quantity x hole Ø:
2 x Ø13 mm
Quantity x hole Ø:
12 x Ø5 mm
Material/surface:
raw steel, sendzimir galvanised
Surface / Colour:
VERZ
Material:
Steel
Width:
55 mm
Height:
180 mm
Weight per UQ (kg):
0.206 kg
Contents Unit:
50 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Fastening type
Action
Article-No. 338480
Dimension a 40 mm
Dimension b 160 mm
Dimension c 30 mm
Fastening type for screwing on
Article-No. 339982
Dimension a 55 mm
Dimension b 180 mm
Dimension c 30 mm
Fastening type for screwing on
