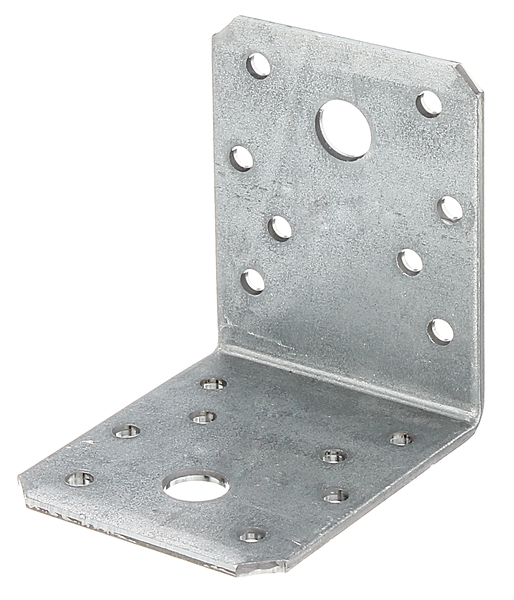

Angle bracket
Art.-No. 334611
raw steel, sendzimir galvanised, with CE marking in accordance with ETA-08/0165

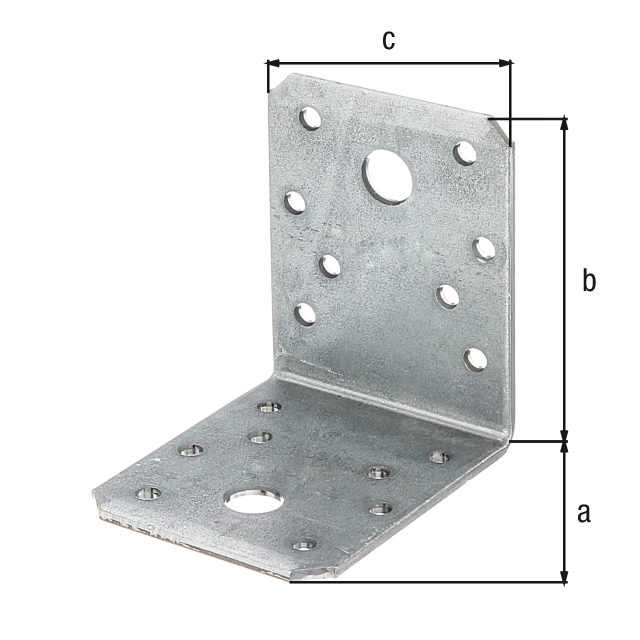

- Dimension a:
- 70 mm
- Dimension b:
- 70 mm
- Dimension c:
- 55 mm
- Fastening type:
- for screwing on
- Material thickness:
- 2.5 mm
- Quantity x hole Ø:
- 2 x Ø11 mm
- Quantity x hole Ø:
- 16 x Ø5 mm
- Material/surface:
- raw steel, sendzimir galvanised, with CE marking in accordance with ETA-08/0165
- Surface / Colour:
- VERZ
- Material:
- Steel
- Approval:
- Europ.techn.app. ETA-08/0165
- Width:
- 55 mm
- Height:
- 70 mm
- Depth:
- 70 mm
- Weight per UQ (kg):
- 0.131 kg
- Contents Unit:
- 50 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Fastening type
Action
Article-No.
334611
Dimension a
70 mm
Dimension b
70 mm
Dimension c
55 mm
Fastening type
for screwing on

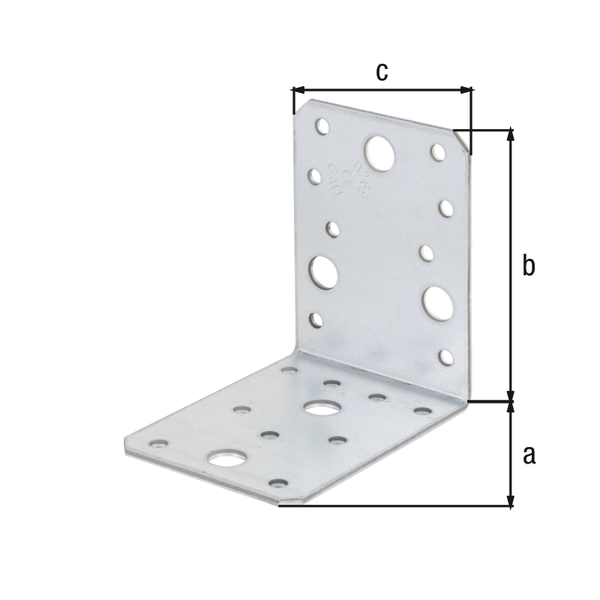

Article-No.
334628
Dimension a
90 mm
Dimension b
90 mm
Dimension c
65 mm
Fastening type
for screwing on

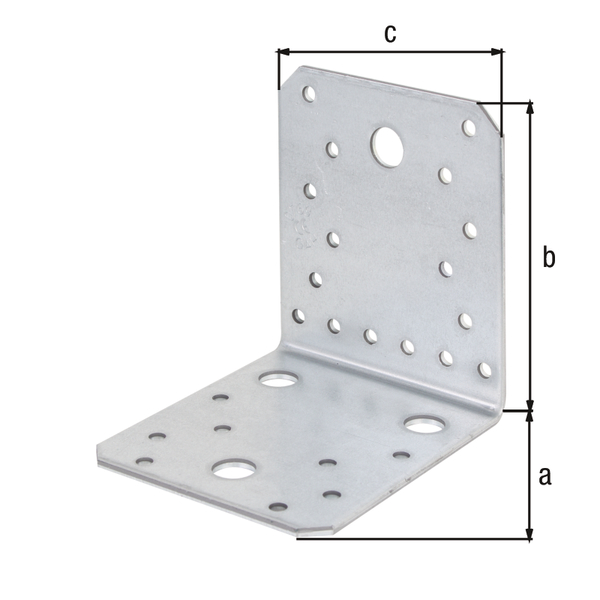

Article-No.
334635
Dimension a
105 mm
Dimension b
105 mm
Dimension c
90 mm
Fastening type
for screwing on
