• Angle bracket, reinforced with fixing claw for driving in, Material: raw steel, Surface: sendzimir galvanised, Depth: 90 mm, Height: 90 mm, Width: 65 mm, Material thickness: 2.00 mm, No. of holes: 2 / 10 / 14, Hole: Ø11 / Ø7.5 / Ø4.5 mm, CutCase
  • Angle bracket, reinforced with fixing claw for driving in, Material: raw steel, Surface: sendzimir galvanised, Depth: 90 mm, Height: 90 mm, Width: 65 mm, Material thickness: 2.00 mm, No. of holes: 2 / 10 / 14, Hole: Ø11 / Ø7.5 / Ø4.5 mm, CutCase

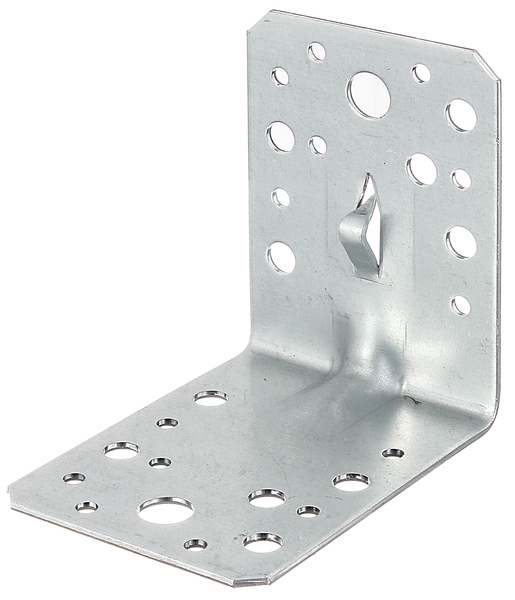

Angle bracket, reinforced with fixing claw for driving in

Art.-No. 339814

raw steel, sendzimir galvanised

2 Variants
Dimension a:
90 mm
Dimension b:
90 mm
Dimension c:
65 mm
Fastening type:
for screwing on
Material thickness:
2 mm
Quantity x hole Ø:
2 x Ø11 mm
Quantity x hole Ø:
10 x Ø7.5 mm
Quantity x hole Ø:
14 x Ø4.5 mm
Material/surface:
raw steel, sendzimir galvanised
Surface / Colour:
VERZ
Material:
Steel
Width:
65 mm
Height:
90 mm
Depth:
90 mm
Weight per UQ (kg):
0.13 kg
Contents Unit:
25 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Fastening type
Action
Article-No. 339807
Dimension a 70 mm
Dimension b 70 mm
Dimension c 55 mm
Fastening type for screwing on
Article-No. 339814
Dimension a 90 mm
Dimension b 90 mm
Dimension c 65 mm
Fastening type for screwing on
  • Angle bracket with extended claw fastener that holds the connector securely to the wood after it is driven in and so allows the unit to be screwed together easily.
