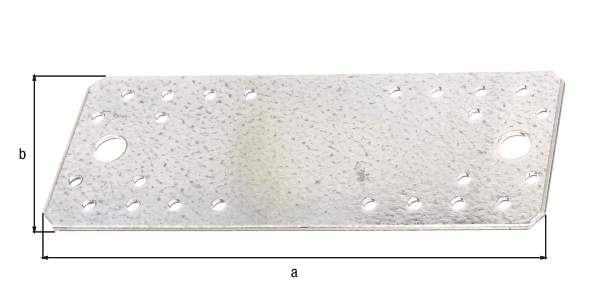

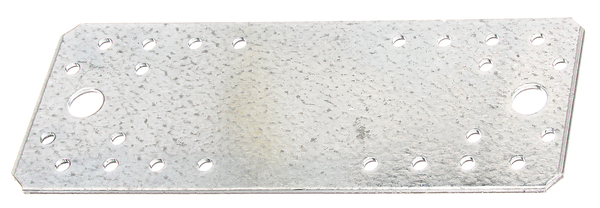

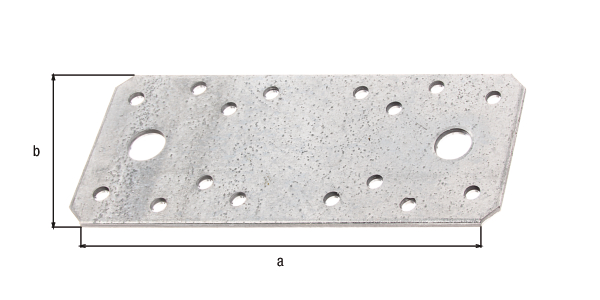

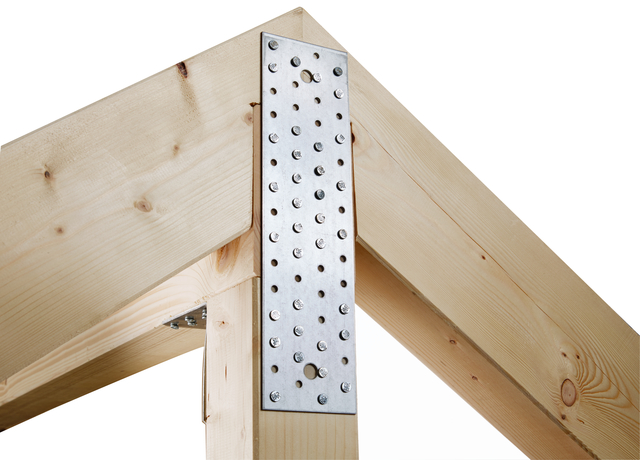

Flat connector
Art.-No. 339753
- Dimension a:
- 172 mm
- Dimension b:
- 65 mm
- Fastening type:
- for screwing on
- Material thickness:
- 2.5 mm
- Quantity x hole Ø:
- 2 x Ø11 mm
- Quantity x hole Ø:
- 24 x Ø5 mm
- Material/surface:
- raw steel, sendzimir galvanised, with marking in accordance with EN 14545
- Surface / Colour:
- VERZ
- Material:
- Steel
- Approval:
- EN14545:2008
- Length:
- 172 mm
- Width:
- 65 mm
- Weight per UQ (kg):
- 0.198 kg
- Contents Unit:
- 50 Piece
Article-No.
Dimension a
Dimension b
Fastening type
Material thickness
Action

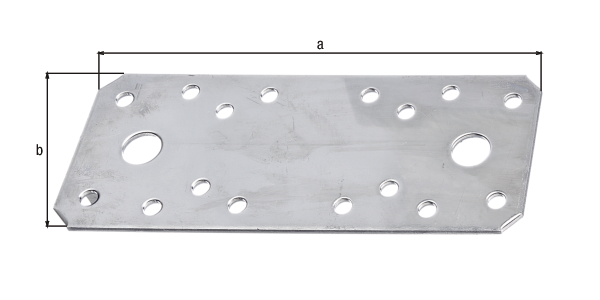

Article-No.
330002
Dimension a
96 mm
Dimension b
35 mm
Fastening type
for screwing on
Material thickness
2.5 mm

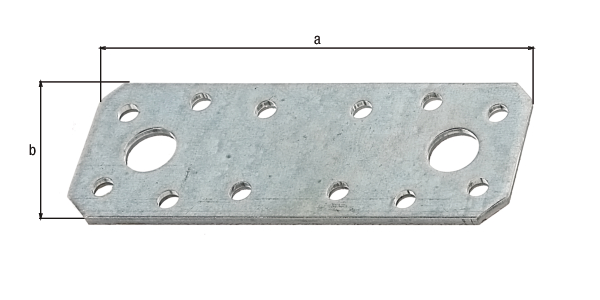

Article-No.
330088
Dimension a
96 mm
Dimension b
35 mm
Fastening type
for screwing on
Material thickness
2.5 mm

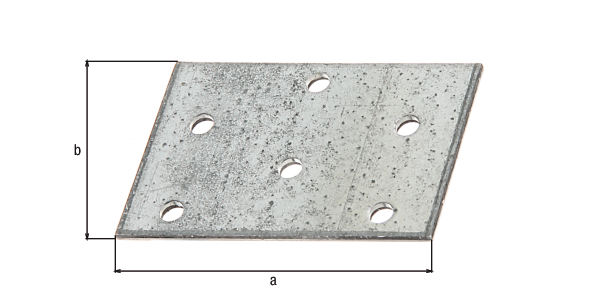

Article-No.
331412
Dimension a
60 mm
Dimension b
40 mm
Fastening type
for screwing on
Material thickness
2 mm

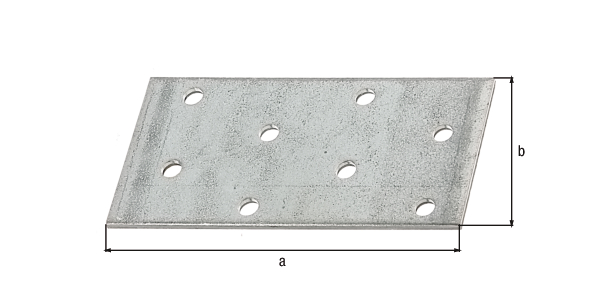

Article-No.
331429
Dimension a
80 mm
Dimension b
40 mm
Fastening type
for screwing on
Material thickness
2 mm

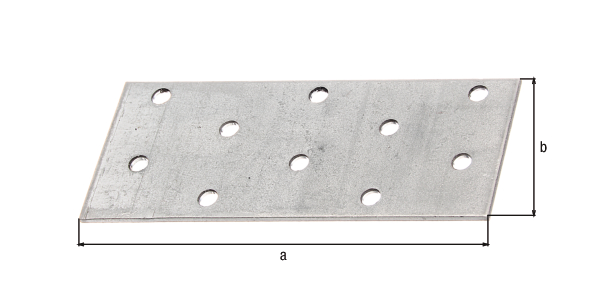

Article-No.
331436
Dimension a
100 mm
Dimension b
40 mm
Fastening type
for screwing on
Material thickness
2 mm

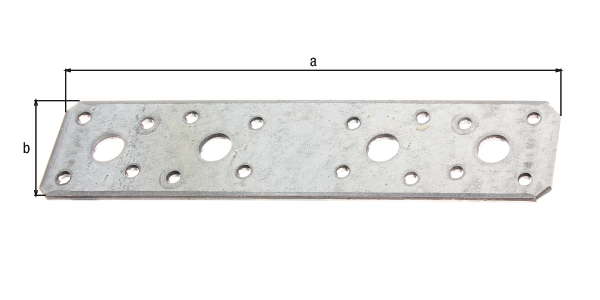

Article-No.
330101
Dimension a
180 mm
Dimension b
40 mm
Fastening type
for screwing on
Material thickness
3 mm

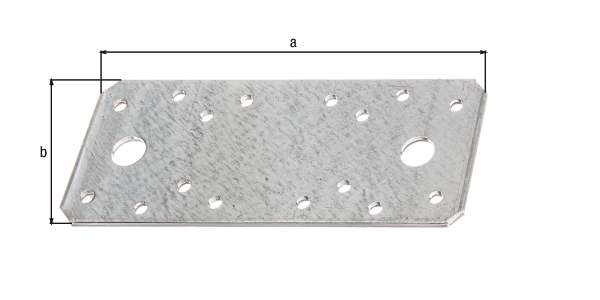

Article-No.
330057
Dimension a
133 mm
Dimension b
55 mm
Fastening type
for screwing on
Material thickness
2.5 mm
Article-No.
339050
Dimension a
133 mm
Dimension b
55 mm
Fastening type
for screwing on
Material thickness
2.5 mm
Article-No.
339753
Dimension a
172 mm
Dimension b
65 mm
Fastening type
for screwing on
Material thickness
2.5 mm

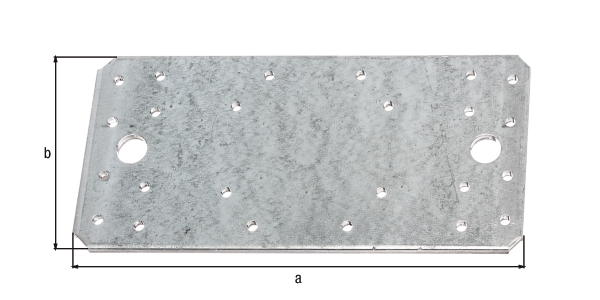

Article-No.
335700
Dimension a
190 mm
Dimension b
90 mm
Fastening type
for screwing on
Material thickness
3 mm
