• Flat steel anchor, Material: raw steel, Surface: sendzimir galvanised, for setting in concrete, with CE marking in accordance with ETA-08/0165, Depth: 400 mm, Height: 40 mm, Width: 40 mm, Material thickness: 2.00 mm, No. of holes: 33, Hole: Ø5 mm, CutCase
  • Flat steel anchor, Material: raw steel, Surface: sendzimir galvanised, for setting in concrete, with CE marking in accordance with ETA-08/0165, Depth: 400 mm, Height: 40 mm, Width: 40 mm, Material thickness: 2.00 mm, No. of holes: 33, Hole: Ø5 mm, CutCase

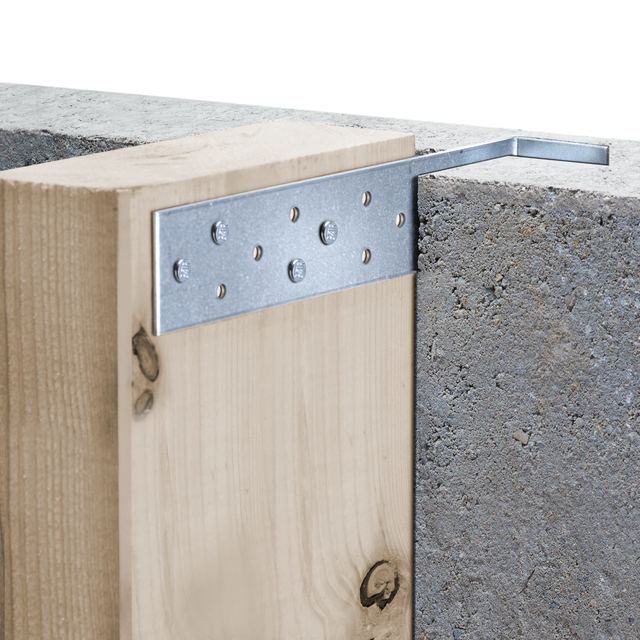

Flat steel anchor

Art.-No. 332204

raw steel, sendzimir galvanised, for setting in concrete, with CE marking in accordance with ETA-08/0165

4 Variants
Dimension a:
400 mm
Dimension b:
40 mm
Dimension c:
40 mm
Fastening type:
for setting in concrete
Material thickness:
2 mm
Quantity x hole Ø:
33 x Ø5 mm
Material/surface:
raw steel, sendzimir galvanised, for setting in concrete, with CE marking in accordance with ETA-08/0165
Surface / Colour:
VERZ
Material:
Steel
Approval:
Europ.techn.app. ETA-08/0165
Width:
40 mm
Height:
40 mm
Depth:
400 mm
Weight per UQ (kg):
0.245 kg
Contents Unit:
10 Piece
