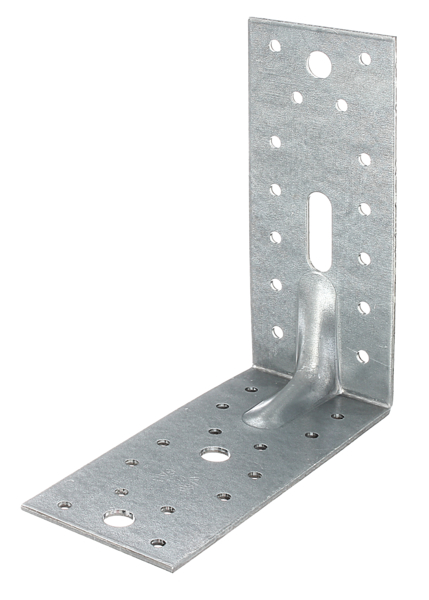

Heavy-duty angle bracket, reinforced

Art.-No. 335724

raw steel, sendzimir galvanised, with CE marking in accordance with ETA-08/0165

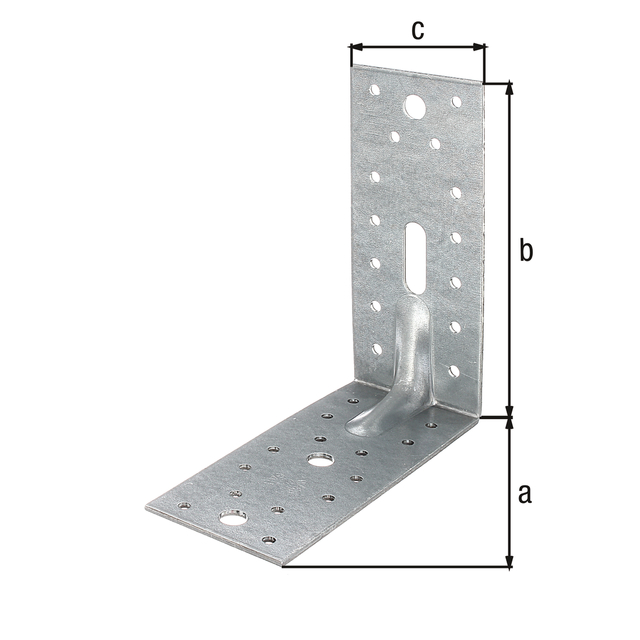

Dimension a:
150 mm
Dimension b:
150 mm
Dimension c:
65 mm
Fastening type:
for screwing on
Material thickness:
2.5 mm
Quantity x hole (LxW):
1 x ( 11 x 33 ) mm
Quantity x hole Ø:
3 x Ø11 mm
Quantity x hole Ø:
28 x Ø5 mm
Material/surface:
raw steel, sendzimir galvanised, with CE marking in accordance with ETA-08/0165
Surface / Colour:
VERZ
Material:
Steel
Approval:
Europ.techn.app. ETA-08/0165
Width:
65 mm
Height:
150 mm
Depth:
150 mm
Weight per UQ (kg):
0.38 kg
Contents Unit:
25 Piece
